59050-010
| Manufacturer | |

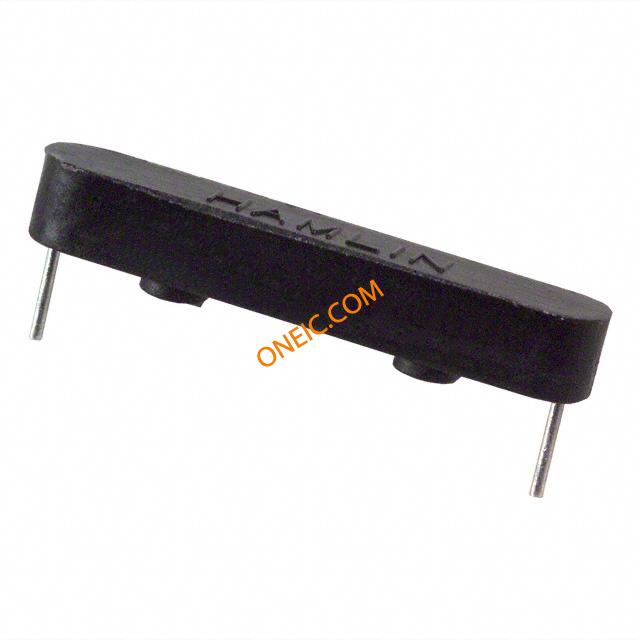

| Description | PROXIMITY SENSOR SENSOR MAG SPST/NO PCMT 10W 200V Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.2 Amps Max Switching Voltage: 200 VDC Activate Distance: .236" (6.0mm) Termination: PC Board Reed sensor 1 make contact (NO) 200 VDC 0.5 A, 59050-010, Hamlin |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 74 Days | Subcategory | Sensor Misc |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365005 | Rad Hardened | No |
Electrical
| Circuit | SPST-NO | Sensing Range | :19.05mm |
| Current - Carry | :1.2A | Current - Output | :500mA |
| Switching Voltage | 200V | Current - Switching | 500mA |
| Power - Average Forward | 10W | Contact Rating @ Voltage | :10W |
Mechanical
| Width | 4.32 | Weight | 0.002 |
| Packaging | Bulk | Mounting Type | Through Hole |

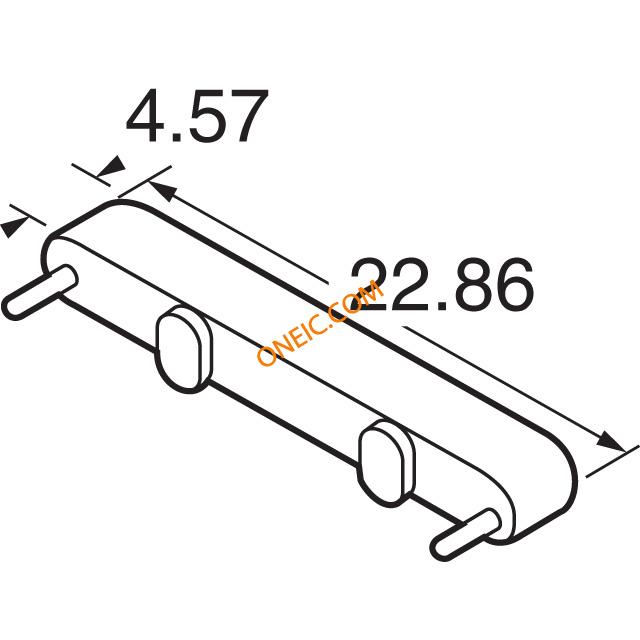

| Cord Termination | :3.3mm Legs for Through-Hole Mounting, Moulded Stand-Offs Allow Board Washing | Length - Overall | 22.86 |
| Material - Magnet | Specified, Not Included | Termination Style | PC Pin, Radial |
| Number of Positions | 2 | Shell Size - Insert | 4.57 |
Product Info
| Type | Molded Body | DELETED | Compliant |
| Printed Circuit Board | 2 | ||
Environmental
| Must Operate | 17 ~ 23AT | ||
