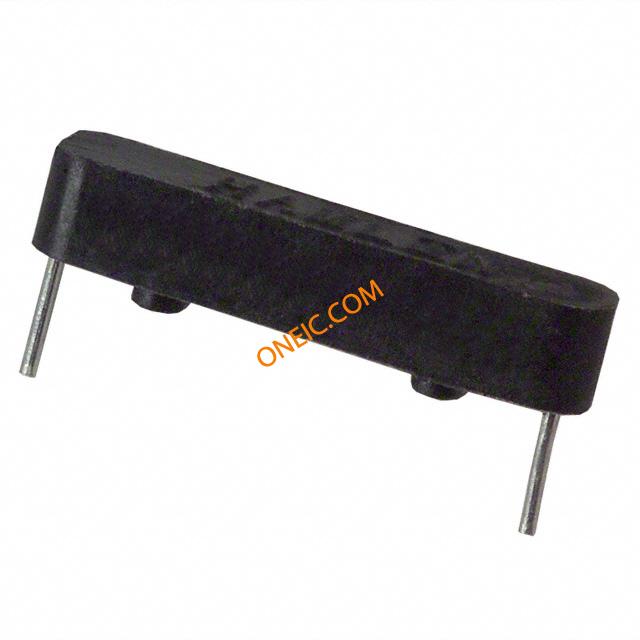

59045-010
| Manufacturer | |
| Description | PROXIMITY SENSOR SENSOR MAG SPST/NO PCMT 10W 200V Proximity Sensors PCB Mount Sensor 2-Pin Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.2 Amps Max Switching Voltage: 200 VDC Activate Distance: .177" (4.5mm) Activate Distance: PC Board Reed sensor 1 make contact (NO) 200 VDC 0.5 A, 59045-010, Hamlin |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 210 Days | Subcategory | Sensor Misc |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Circuit | SPST-NO | Power - Max | 10W |
| Current - Carry | 1.2 Amps | Switching Voltage | 200V |
| Switching Capacity | 10 W | Current - Switching | 500mA |
| Voltage - Switching DC | 200 VDC | Power - Average Forward | 10W |
| Voltage - Supply Span (Max) | 200V | Current - Peak Pulse (10/1000us) | 500mA |
Mechanical

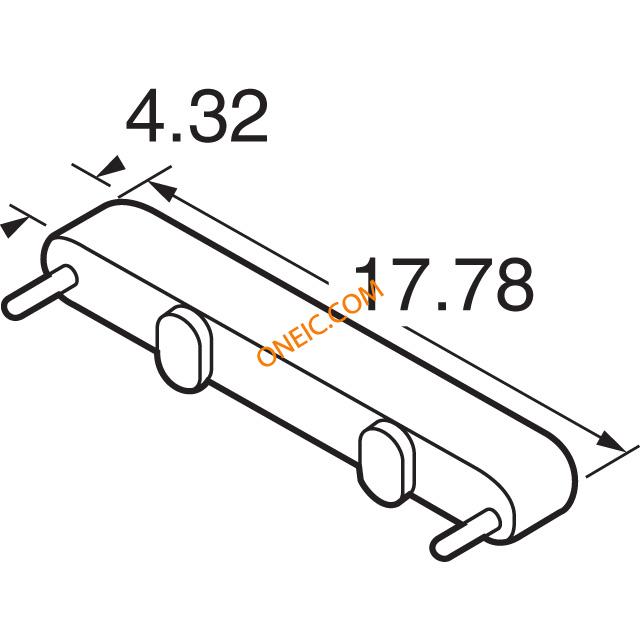

| Size | 17.78 x 3.3 x 4.32 mm | Width | 3.3 |
| Packaging | Bulk | Mounting Type | Through Hole |
| Length - Overall | 17.78 | Material - Magnet | Specified, Not Included |
| Termination Style | PC Pin, Radial | Number of Contacts | 1 make contact (NO) |
| Number of Positions | 2 | Shell Size - Insert | 4.32 |
| Contact Layout, Typical | 1A SPST-NO | ||
Product Info
| Type | Molded Body | Series | 59045 |
| Circuit Type | SPST-NO | Must Release | 13.97mm |
| Card Standard | Reed Sensor | Accessory Type | Specified, Not Included |
| Other Specifications | PC Board | Output Configuration | PCB, Through Hole |
| Printed Circuit Board | 2 | ||
Environmental
| Must Operate | 20 ~ 25AT | Operating Temperature | -40...+105 °C |
