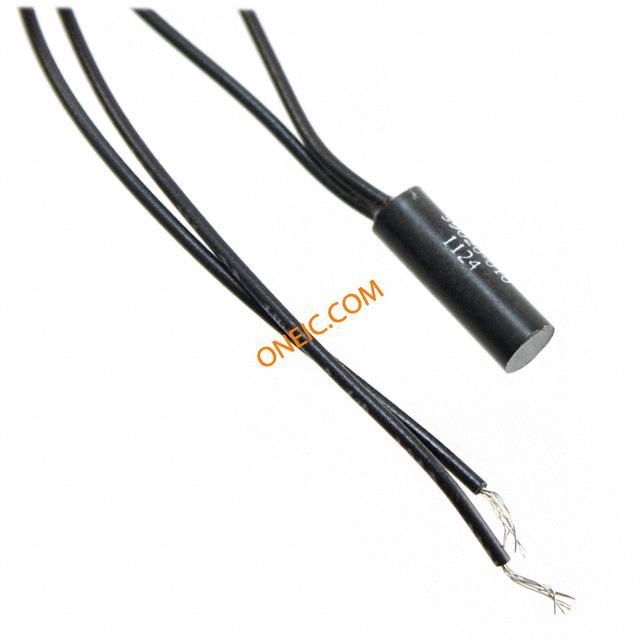

59020-010
| Manufacturer | |
| Description | PROXIMITY SENSOR SENSOR MAGNETIC SPST-NO 100V Proximity Sensors Reed Sensors |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | Sensor Misc |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output Type | SPST-NO | Release Time | 1.0 ms |
| Power - Rated | 10 W | Current - Carry | 0.5 Amps |
| Contact Resistance | 0.2 ohm | Capacitance - Input | 0.2 pF |
| Current - Switching | 0.5 AMP | Voltage - Breakdown | 175 VDC |
| Insulation Resistance | 10^10 ohm | Voltage - Switching DC | 170 VDC |
Mechanical
| Lead Style | Through Hole | Termination | Un-tinned leads |
| Cable Length | (11,81) 300 | Travel Range | 6-10 |
| Mounting Type | Through Hole | Package / Case | Probe |
| Operating Force | 100 G | Actuator Material | Magnet |

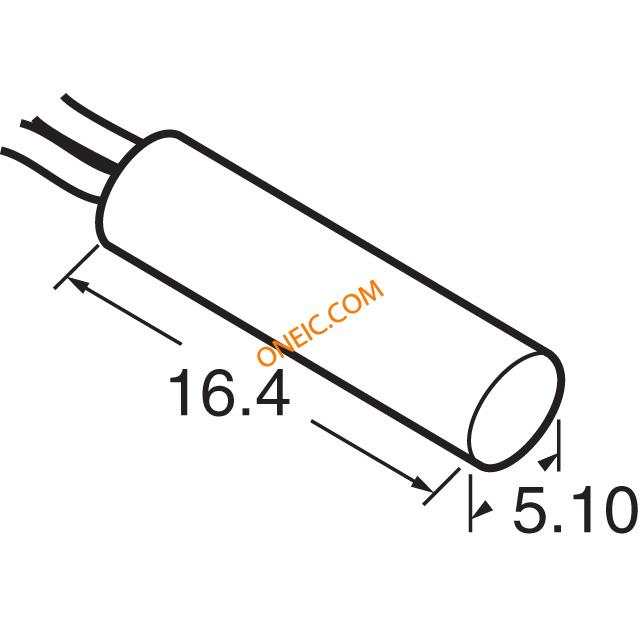

| Termination Style | Wire Leads | Diameter - Outside | 5.1 |
| Number of Positions | 2 | Shell Size - Insert | 16.4 |
| Contact Layout, Typical | SPST-NO (1 Form A) | ||
Product Info
| Type | Reed Switch | Function | Switch |
| Must Release | 7.62mm | Card Standard | Reed Sensor |
| Other Specifications | .236" (6.0mm) | Printed Circuit Board | 2 |
Environmental
| Must Operate | 2.54mm | Operate Time | 1.0 ms |
| Operating Temperature | -40 to +105 °C | ||
