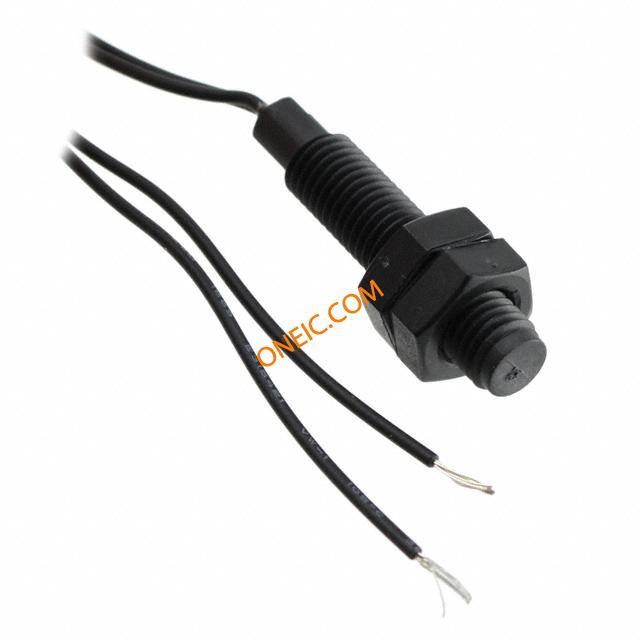

59065-040
| Manufacturer | |
| Description | SENSOR MAGNETIC SPST-NC .5A SENSOR MAGNETIC SPST-NC .5A 175V Proximity Sensors PROXIMITY SENSOR Reed Sensor Contact Configuration: 1B SPST-NC Carry Current: 1.5 Amps Max Switching Voltage: 175 VDC Activate Distance: .236" (6.0mm) Termination: Leads |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 70 Days | Subcategory | Sensor Misc |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 90318038 |
Electrical
| Output Type | SPST-NC | Sensing Range | :20.32mm |
| Current - Carry | :1.5A | Current - Output | :250mA |
| Contact Rating @ Voltage | :5W | ||
Mechanical
| Weight | 0.005 | Mounting Style | :- |
| Package / Case | Cylinder, Threaded | Actuator Material | Magnet |
| Termination Style | Wire Leads | ||
Product Info
| Type | Reed Switch | Function | Switch |
| Must Release | 20.32mm | Leaded Process Compatible | :Yes |
Environmental
| Must Operate | 3.81mm | Operating Temperature | :-40°C |
