70-IDC5B
| Manufacturer | |
| Description | Relay SSR 18mA 32V DC-IN 0.05A 50V DC-OUT 5-Pin I/O Module Relays Input Module 32VDC 18mA 4000Vrms Thru-Hole INPUT MODULE DC 18MA 5VDC Module; DC Input; 3 to 32 VDC; 32 VDC (Max.); 18 mA (Max.); 5 VDC; 3 to 6 VDC Module,DCInput;3to32VDC;32VDC(Max.);18mA(Max.);5VDC;3to6VDC 70 Series 18 mA 3 to 32 V Standard Package DC Input I/O Module |
| Category |
Business
| Lead Time | 21 Days | Subcategory | I/O Module |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Not Applicable | Approval Agency | CE/CSA/TUV/UL |
Electrical
| Input | 3to32VDC | Input Type | Digital |
| Input Range | 3to32VDC | Output Type | DC |
| Release Time | 0.075ms | Turn On Time | 0.05ms |
| Isolation Type | 4000Vrms | Modulator Type | Input Module |
| Voltage Rating | 32 V | Current - Output | 0.05 A |
| Delay Time - OFF | 0.075ms | Voltage - Supply | 5VDC |
| Voltage - Nominal | 5VDC | Number of Channels | 1 |
| Current - Receiving | 18mA | Voltage - Isolation | 4000(RMS) V |
| Current - Input Bias | 18mA | Current Rating (Max) | 18mA |
| Voltage - Input (Min) | 32VDC | Voltage - Output (Max) | 50(Min) V |
| Current Drain (Id) - Max | 18mA | Logic Voltage - VIL, VIH | 3to6VDC |
| Voltage - Supply, Digital | 5VDC (3 ~ 6VDC) | Current - Input Bias (Max) | 18 mA |
| Current - Supply (Disable) (Max) | 50mA | ||
Mechanical
| Color | White | Mounting Type | Screw |
| Terminal Style | PC Pins | Primary Material | Control |
Product Info
| Type | DC | Style | Standard |
| Series | 70 | Features | Hold Down Screw |
| Technology | Solid State | Main Purpose | Hold Down Screw |
| Connection Type | BoardMount | Assembly Configuration | Through Hole |
Environmental
| Ingress Protection | DC | Operating Temperature | 100 |
Documents & Media
Similar Parts
70RCK16
grayhill
Rack 16 Channel 32-Pin Rack 16 Channel 32 Pin For Use With System 50 Style Controllers I/O MOUNTING BRD STANDARD 16POS Rack,16Channel;16;50-Pin;Screw;PanelMount;ULListed,CSACertified
70RCK16-HL
grayhill
I/O RACK, STANDARD, 16 CHANNEL, 50-PIN HEADER WITH EJECTOR L I/O MOUNTING BRD STANDARD 16POS I/ORack,Standard,16Channels,50PinHeader,EjectorLevers
70RCK8-HL
grayhill
I/O RACK, STANDARD, 8 CHANNEL, 50-PIN HEADER WITH EJECTOR LE Racks 8 Channel I/O MOUNTING BOARD STANDARD 8POS I/ORack,Standard,8Channels,50PinHeader,EjectorLevers 8 Channel Standard Style Screw Terminal Blocks I/O Mounting Board
70RCK4
grayhill
Racks 4 Channel I/O MOUNTING BOARD STANDARD 4POS Rack; 4; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified I/O RACK Rack;4;50-Pin;Screw;DINRailMount;ULListed,CSACertified 4 Channel Standard Style Screw Terminal Blocks I/O Mounting Board
70RCK4R
grayhill
Racks 4 Channel Racks 4 Channel Use For Isolating And Coverting Signal Types To Standard Logic Voltages I/O MOUNTING BOARD STANDARD 4POS Rack; 4; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified I/O RACK Rack;4;50-Pin;Screw;DINRailMount;ULListed,CSACertified

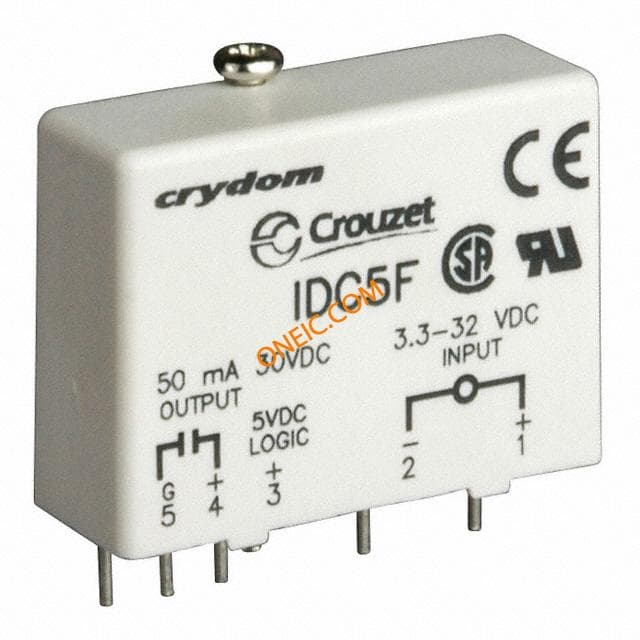

IDC5F
