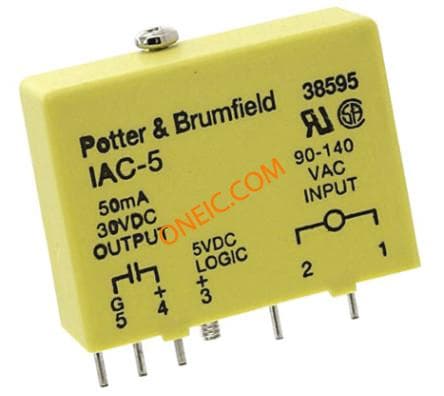

70-IAC5
| Manufacturer | |
| Description | OptoCoupler Transistor-Out 1-CH 5-Pin I/O Module Relays Input Module 140VAC 8mA 4000Vrms Thru-Hole INPUT MODULE AC 8MA 5VDC Module; Input; 120; 8; 22 Kilohms (Nom.); 20 ms; 20 ms; -40 to ? degC Module;Input;120;8;22Kilohms(Nom.);20ms;20ms 70 Series 140 V 8 mA Yellow Color Standard Style AC Input Module |
| Category |
Business
| Lead Time | 21 Days | Subcategory | I/O Module |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | RoHS Not Applicable |
| Standards | UL,CSA,CE,TUVCertified | Approval Agency Marking | CE/CSA/TUV/UL |
Electrical
| Input | 90to140VAC | Input Type | AC |
| Input Range | 90to140VAC | Release Time | 20ms |
| Turn On Time | 20ms | Voltage Rating | 90VAC |
| Current - Output | 10mA | Delay Time - OFF | 20ms |
| Voltage - Supply | 5VDC | Number of Channels | 1 |
| Resistance - Input | 22Kiloohms(Nom.) | Current - Receiving | 8mA |
| Voltage - Isolation | 4000Vrms | Current - Input Bias | 10mA |
| Current Rating (Max) | 50mA | Voltage - Input (Min) | 90 ~ 140VAC (120VAC Nom) |
| Input Voltage (Typical) | 120VAC | Voltage - Supply, Digital | 5VDC (3 ~ 6VDC) |
| Current - Input Bias (Max) | 8mA | Voltage - Continuous Operating (Max) (MCOV) | 120 |
Mechanical
| Color | Yellow | Mounting Type | Screw |
| Terminal Type | PC Pins | Primary Material | Control |
Product Info
| Type | AC | Style | Standard |
| Series | 70 | Features | Hold Down Screw |
| Technology | Solid State | Main Purpose | Hold Down Screw |
| Connection Type | BoardMount | Module/Board Type | Input Module |
Environmental
| Operating Temperature | -40to+100°C | ||
