2202
| Manufacturer | |

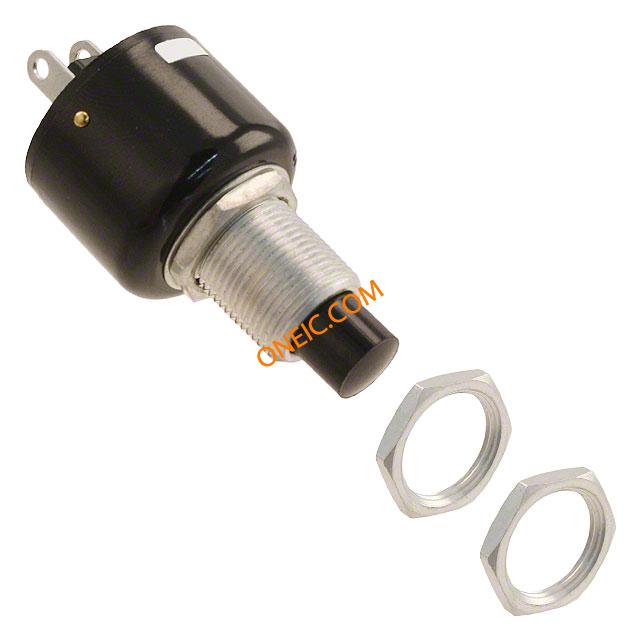

| Description | Switch Push Button N.C. SPST Round Plunger 10A 220VAC Momentary Contact Solder Lug Panel Mount SWITCH PUSH SPST-NC 10A 115V SWITCH, PUSHBUTTON, SPST, 10A, 220V Switch,Pushbutton;PanelMount;10A@115VAC,5A@220VAC;SPST;Solder |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Other Names | GH7518 |
| Subcategory | Switch Push Button | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365005 |
Electrical
| Circuit | SPST-NC | Voltage Rating | 115V |
| Switch Function | On-Mom | Voltage - Rated AC | 220V |
| Current Rating (Max) | 10@115VAC A | Current - Max/Contact | :10A |
| Voltage - Input (Min) | 220 V | Switch Function/Rating | N.C. |
| Voltage - Rated AC (Phase to Ground/Neutral) | :220V | ||
Mechanical
| Depth | 22.35 mm | Height | 48.34 mm |
| Weight | 0.018 | Packaging | Bulk |
| Actuator Type | Round, Plunger | Mounting Type | Panel Mount |
| Terminal Type | Solder Lug | Mounting Style | Panel |
| Contact Material | Fine Silver | Length - Overall | 22.35 mm |
| Actuator Diameter | :0.312" | Actuator Material | Thermoset Plastic |
| Termination Style | Solder Lug | Actuator Style/Size | Round Plunger |
| Color - Actuator/Cap | Black | Switch Actuation Level | SPST |
| Contact Layout, Typical | :SPST | Illumination Type, Color | Not Required |
Product Info
| Type | Standard | Series | 2000 |
| Features | Audible Click | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 25,000 Cycles | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
