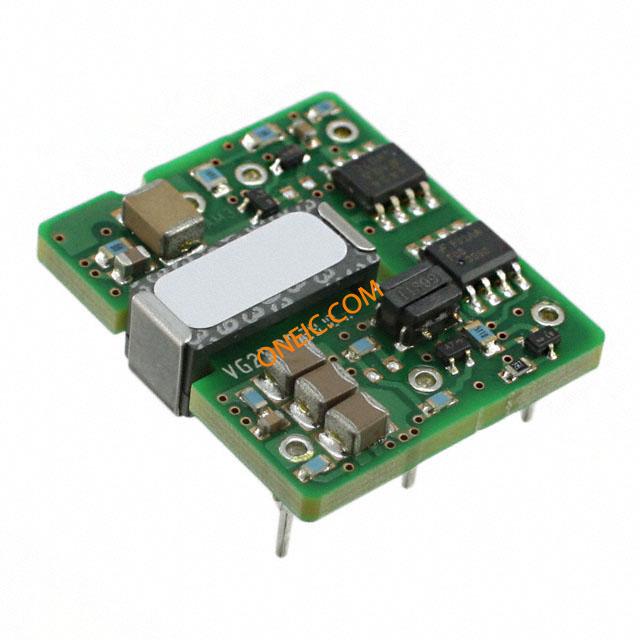

SW001A2B91Z
| Manufacturer | |
| Description | HAZMAT DC/DC Converters 48V to 12V 1.2A Through Hole CONVERTER DC/DC 12V 1.2A OUT T/H Isolated DC/DC Converters 48V to 12V 1.2A Through Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Part # Aliases | CC109107356 |
| Product Category | DC/DC Converters | Standard Package | 90 |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Efficiency | 87% | Output Type | Isolated |
| Power - Max | 14W | Output Power | 14 W |
| Voltage - Input | 54 V | Current - Output | 1.2A |
| Number of Outputs | 1 | Power (Watts) - Max | 14W |
| Voltage - Isolation | 2.25 kV | Voltage - Input (Min) | 36 V to 75 V |
| Current - Output / Channel | 1.2 A | ||
Mechanical
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | DIP |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm) | ||
Product Info
| Type | Isolated Module | Series | SW001 |
| Features | Remote On/Off, OCP, OVP, UVLO | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
