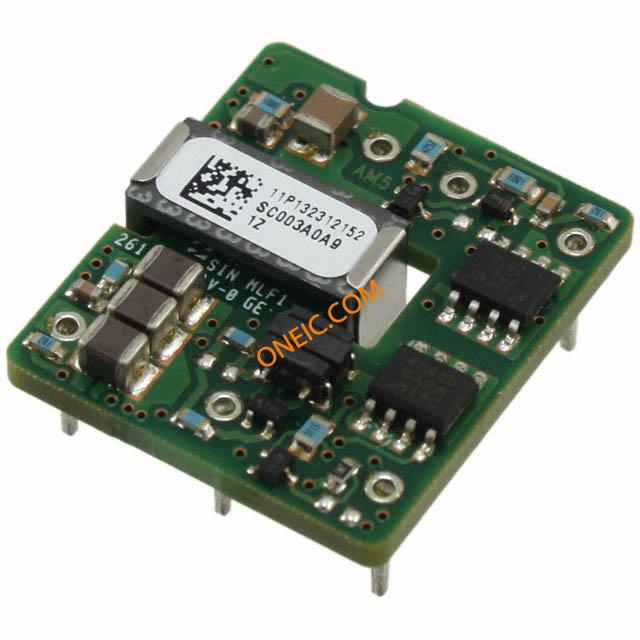

SC003A0A91Z
| Manufacturer | |
| Description | HAZMAT DC/DC Converters 24V to 5.0V 3.0A Through Hole CONVERTER DC/DC 5V 3A OUT DC DC, ISOLATED, 5VDC 3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Part # Aliases | CC109107307 |
| Product Category | DC/DC Converters | Standard Package | 90 |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044030 |
| Approval Agency | :- | ||
Electrical
| Efficiency | 85.5% | Output Type | Isolated |
| Power - Max | 15W | Output Power | 15 W |
| Converter Type | :Isolated POL | Voltage Rating | :5V |
| Voltage - Input | 24 V | Current - Output | 3A |
| Number of Outputs | 1 | Power (Watts) - Max | 15W |
| Voltage - Isolation | 2.25 kV | Voltage - Input (Min) | 18 V to 36 V |
| DC Voltage - Input (Max) | :24V | Current - Output / Channel | 3 A |
Mechanical
| Depth | :27.94mm | Width | :24.38mm |
| Height | :8.5mm | Weight | 0.09 |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | DIP |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | ||
Product Info
| Type | Isolated Module | Series | SC003 |
| Features | Remote On/Off, OCP, OVP, UVLO | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
