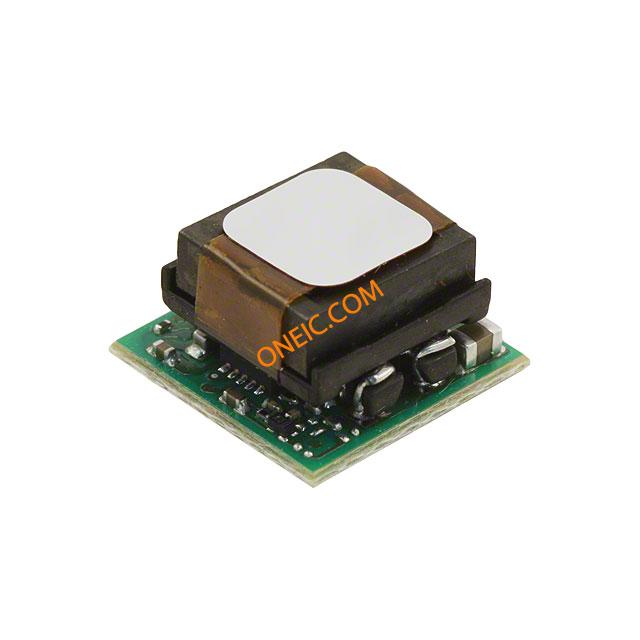

PVX006A0X3-SRZ
| Manufacturer | |
| Description | Module DC-DC 1-OUT 0.6V to 5.5V 6A 17-Pin SMD T/R DC/DC Converters 3-14.4Vin .6-5.5V 6A Neg Logic SMT Analog CONVERTER DC/DC 5.5V 6A OUT Non-Isolated DC/DC Converters 3-14.4Vin .6-5.5V 6A Neg Logic SMT Analog DC DC, NON ISOLATED, 5.5VDC 6A SMD PVX006A0X3-SRZ from GE Energy, 6 Watt, Single Output |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Other Names | 555-1263-1 |
| Product Category | DC/DC Converters | Standard Package | Tape & Reel |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044030 |
| Approval Agency | :CSA, UL, VDE | ||
Electrical
| Input | 3.0-14.4VDC | Output | 0.6V @ 6.00A |
| Efficiency | 94% | Output Type | Non-Isolated |
| Power - Max | 33W | Power - Rated | 6 Amp |
| Converter Type | :Non Isolated POL | Voltage Rating | 0.6 to 5.5 V |
| Current - Output | 6 A | Number of Outputs | 1 |
| Power (Watts) - Max | 33W | Switching Regulator | Yes |
| Voltage - Input (Min) | 3 VDC to 14.4 VDC | Voltage - Output (Max) | :5.5V |
| DC Voltage - Input (Max) | :14.4V | Current - Output / Channel | 6 A |
| Voltage - Output (Min/Fixed) | :0.6V | ||
Mechanical
| Size | 0.48 x 0.48 x 0.29 | Weight | 0.012 |
| Packaging | Reel | Mounting Type | Surface Mount |
| Package / Case | 17SMD | Size / Dimension | 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm) |
Product Info
| Type | Non-Inverting|Inverting|Step Up|Step Down | Series | DLynx |
| Features | Remote On/Off, OCP, OTP, UVLO | Stock Status | Please Call |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
