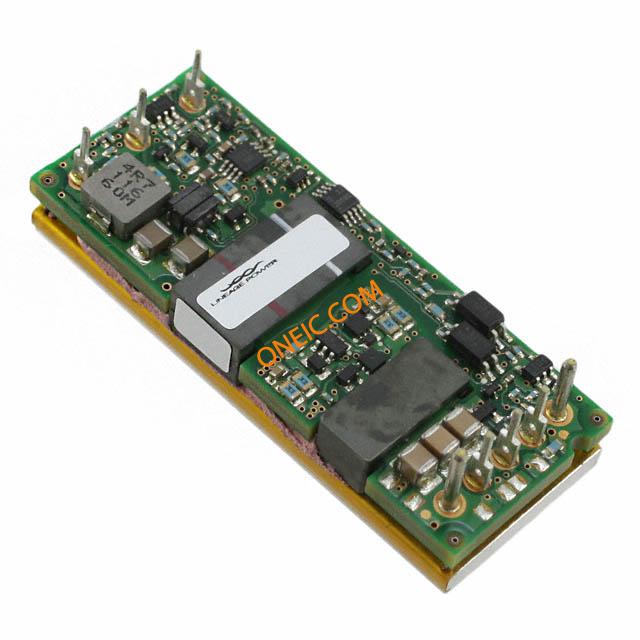

EVW020A0A41-HZ
| Manufacturer | |
| Description | Module DC-DC 1-OUT 5V 20A 8-Pin 1/8-Brick DC/DC Converters 48Vin 5Vout 20A TH Neg Logic CONVERTER DC/DC 5.0V 20A OUTPUT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Part # Aliases | CC109147427 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Efficiency | 92% | Power - Max | 100W |
| Voltage Rating | 5 V | Voltage - Input | 48 V |
| Current - Output | 20 A | Number of Outputs | 1 |
| Power (Watts) - Max | 100W | Switching Regulator | Yes |
| Voltage - Isolation | 2.25 kV | Voltage - Input (Min) | 36 V to 75 V |
| Current - Output / Channel | 20 A | ||
Mechanical
| Packaging | Tray | Mounting Type | Through Hole |
| Package / Case | 81/8-Brick | Size / Dimension | 2.30" L x 0.90" W x 0.32" H (58.4mm x 22.8mm x 8.1mm) |
Product Info
| Type | Step Down | Features | Remote On/Off, OCP, OTP, OVP, UVLO |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
