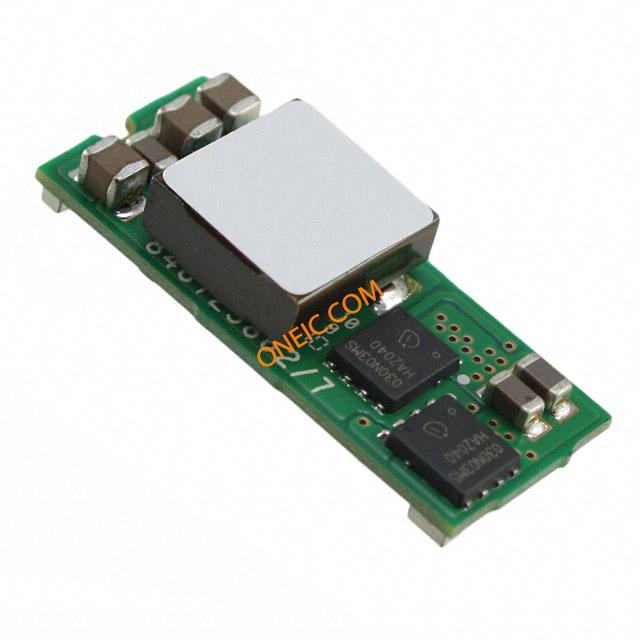

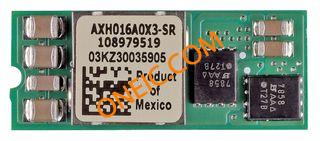

AXA016A0X3-SRZ
| Manufacturer | |
| Description | AUSTIN SUPERLYNX 12V SMT NON-ISOLATED Module DC-DC 1-OUT 0.75V to 5.5V 16A 6-Pin SMT DC/DC Converters SMT in 10-14Vdc out 0.75-5.5Vdc 16A CONVER DC/DC 0.75 5.5V @ 16A SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Other Names | 555-1065-1 |
| Part # Aliases | CC109104840 | Product Category | DC/DC Converters |
| Standard Package | Tape & Reel | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Efficiency | 92% | Output Type | Non-Isolated |
| Power - Max | 88W | Output Power | 88 W |
| Voltage Rating | 0.75 to 5.5 V | Current - Output | 16 A |
| Number of Outputs | 1 | Power (Watts) - Max | 88W |
| Switching Regulator | Yes | Voltage - Input (Min) | 10 V to 14 V |
| Current - Output / Channel | 16 A | ||
Mechanical
| Packaging | Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 6SMT |
| Size / Dimension | 1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.3mm) | ||
Product Info
| Type | Step Down | Series | Austin SuperLynx |
| Features | Remote On/Off, OCP, OTP, UVLO | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
