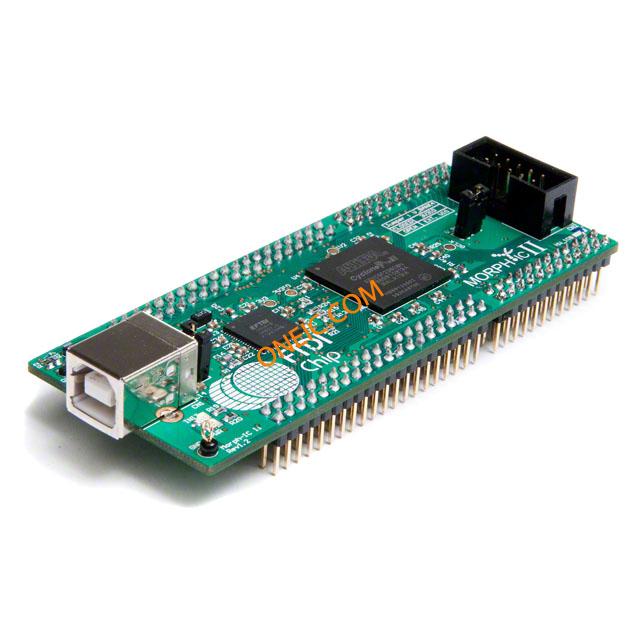

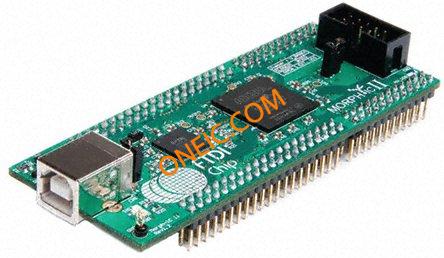

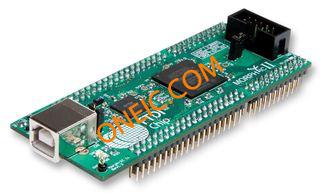

MORPH-IC-II
| Manufacturer | |
| Description | Other Modules USB Hi-Speed Altera Cyclone-II FPGA Mod MODULE USB TO FPGA Morph-IC-II, Programmable Logic Development Kit, Module, FPGA, CD with Software, VHDL Reference Designs CYCLONE II, USB BASED, FPGA DEV MOD IC, DEVELOPMENT MODULE; USB HI-SPEED ALTERA CYCLONE-II; PROGRAMMABLE; 8-BIT; 5V Module: FPGA; JTAG; High Speed; USB B |
| Category |
Business
| Product | FPGA Modules | Product Category | Other Modules |
| Standard Package | 5 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85429000 |
Electrical
| Speed | High Speed | Core Type | :Cyclone |
| Interface | Serial, USB | Voltage - Supply | 3.3 V |
Mechanical
| Weight | 0.05 | Packaging | Box |
| Connector Type | USB B | Size / Dimension | 99.8 mm x 39.6 mm x 15 mm |
Product Info
| Type | FPGA | Contents | Board |
| Features | :Ultra Fast FPGA Configuration, JTAG Interface | Technology | FPGA |
| Kit Contents | :Board | Manufacturer | :EP2C5 |
| Card Standard | Module | Communications | FPGA |
| Number of Units | 1 | MCU Supported Families | :EP2C5F256C8N |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Operating Temperature | + 85 C |
