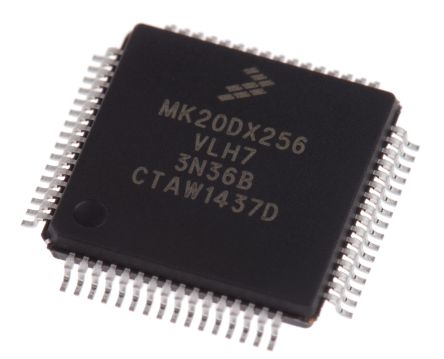

MK20DX256VLH7
| Manufacturer | |
| Description | IC MCU 32BIT 256KB FLASH 64LQFP NXP Kinetis K2x 系列 ARM Cortex M4 MCU, 72MHz, 288 kB ROM 闪存, 66 kB RAM, 1xUSB, 64针 LQFP封装 ARM Microcontrollers - MCU KINETIS 256K |
| Category |
Business
| Factory Pack Quantity | 160 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Timer | 2（双通道） | Core Type | ARM Cortex M4 |
| Clock Rate | 72 MHz | Resolution | 16 |
| Memory Size | 66 kB | Memory Type | 闪存 |
| PWM Channel | 8 | Number of I/O | 2 |
| Voltage - I/O | 3.3 V | Counter/Timers | 2 |
| FPGA Core Cells | ARM Cortex M4 | Frequency - Max | 72MHz |
| Number of DAC's | 1 | Voltage - Supply | 1.71 → 3.6 V |
| Number of Channels | 1 | Analog Input:Output | 2 x 16 位 |
| Program Memory Size | 288 kB | Program Memory Type | Flash |
| Number of ADCs / DACs | 2 | Voltage - Supply, Analog | 3.3 V |
Mechanical
| Width | 10mm | Height | 1.6mm |
| Length | 10mm | Packaging | Tray |
| Mounting Type | 表面贴装 | Connector Type | 3 |
| Mounting Style | SMD/SMT | Number of Pins | 64 |
| Package / Case | LQFP-64 | Package Quantity | LQFP |
| Size / Dimension | 10 x 10 x 1.6mm | Number of Contacts | 2 |
| Number of Cores/Bus Width | 32 bit | Pulse Width Distortion (Max) | 1（8 通道） |
Product Info
| USB | 1 | Series | Kinetis K2x |
| Function | Y | Manufacturer | NXP / Freescale |
| Pattern Type | DSP | ||
Environmental
| Operating Temperature | +105 °C | ||
Documents & Media
Similar Parts
8.08.00 J-LINK
Segger Microcontroller
Emulators / Simulators JTAG EMULATOR FOR ARM CORES JTAG EMULATOR, USB, FOR ARM
5.07.01 FLASHER ARM
Segger Microcontroller
Programmers - Processor Based PROGRAMMER JTAG FOR ARM CORES FLASH PROGRRAMMER, FOR ARM, CORTEX
KRN-K2XX-KINETI-P-P1-SINGLE
Silicon Laboratories Inc.
RTOS, UC/OS-II, FOR KINETIS
KRN-K3XX-KINETI-P-P1-SINGLE
Silicon Laboratories Inc.
RTOS, UC/OS-III, FOR KINETIS
MK10DX256VLH7
Freescale Semiconductor - NXP
IC MCU 32BIT 256KB FLASH 64LQFP Kinetis K 32-bit MCU ARM Cortex-M4 core, 256KB Flash, 72MHz NXP Kinetis K1x 系列 ARM Cortex M4 MCU, 72MHz, 288 kB ROM 闪存, 66 kB RAM, 64针 LQFP封装 ARM Microcontrollers - MCU KINETIS 256K FLEX

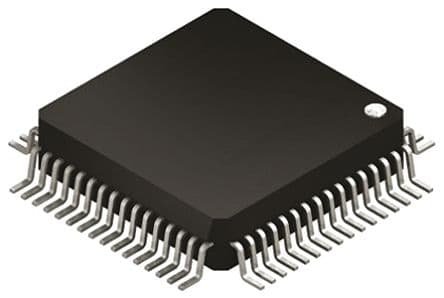

MK30DX128VLH7
