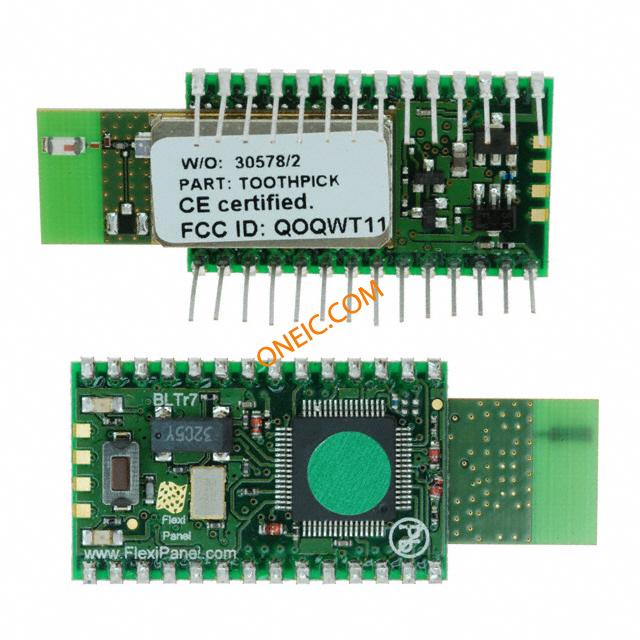

TP20-DIL
| Manufacturer | |
| Description | Bluetooth / 802.15.1 Modules Toothpick 2.0 28-pin DIL package 3.3V-5V MODULE TOOTHPICK 2.0 28-DIP |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Bluetooth / 802.15.1 Modules | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Data Rate | 50 Kbps to 90 Kbps | Frequency | 2.4GHz |
| Interface | I2C, SPI, UART | Memory Size | 128kB Flash, 3.5kB RAM, 1kB EPROM |
| Output Power | 100 mW | Data Interface | PCB, Through Hole |
| Voltage - Supply | 3.3 V to 5 V | Current - Receiving | 25mA |
| Current - Transmitting | 25mA | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Packaging | Tube | Mounting Style | Through Hole |
| Package / Case | 28-DIP Module (0.600", 15.24mm) | Size / Dimension | 51 mm x 22 mm x 10 mm |
| Antenna Connector | Integral | ||
Product Info
| Class | 1 | Modulation or Protocol | Bluetooth |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
