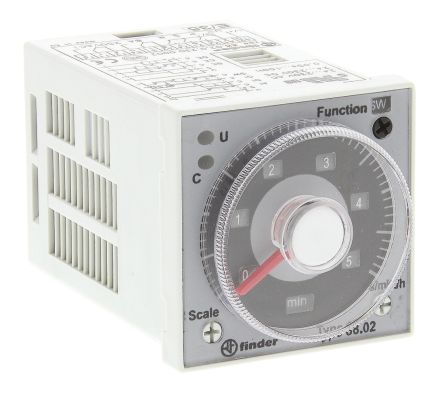

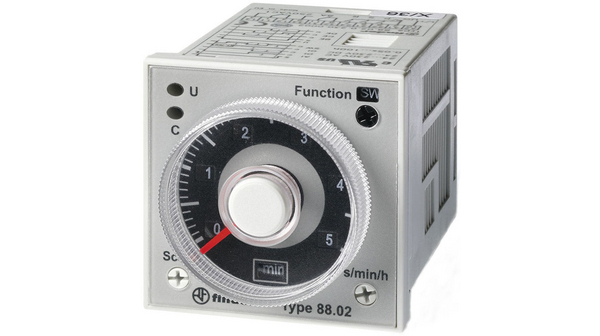

88.02.0.230.0002
| Manufacturer | |
| Description | MULTIFUNCTION TIMER Timer; PIN:11 Time lag relay Multifunction, 88.02.0.230.0002, Finder Finder 多功能 计时继电器, 0.05-10 h, 0.05-10 min, 0.05-10 s, 5-100 h, 双刀双掷, 2触点, DPDT, 24 → 230 V 交流/直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Output | :2 Changeover Relays | Range deg/s | :FINDER - 88 Series |
| Load Current | :8A | Voltage - Core | :250V |
| Voltage Rating | :24VAC | Delay Time - ON | :0.05s |
| Number of Poles | :2 | Delay to 1st Tap | :0.05s to 100h |
| Voltage - Supply | :230V | Connector Impedance | :Plug-In |
| Current - Switching | :15A | Current Rating (Max) | :500mA |
| Current - Max/Contact | :8A | Voltage - Input (Max) | :230V |
| Voltage - Input (Min) | :24VDC | Voltage - Continuous Operating (Max) (MCOV) | :230VAC |
Mechanical
| Depth | :79.5mm | Width | :45mm |
| Length | :48mm | Weight | 0.125 |
| Mounting Type | :Panel | Number of Pins | :11 |
| Number of Positions | 11 | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | :45mm | ||
Product Info
| Series | :88 | Function | :Multifunction |
| Adjustment Type | :Knob | Number of Units | 1 |
| Module/Board Type | timer | Other Specifications | :100h |
| Timing Adjustment Method | :Thumbwheel Switch | ||
Environmental
| Operating Temperature | :55°C | ||
