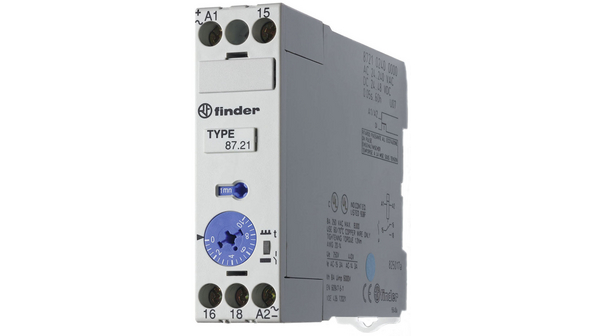

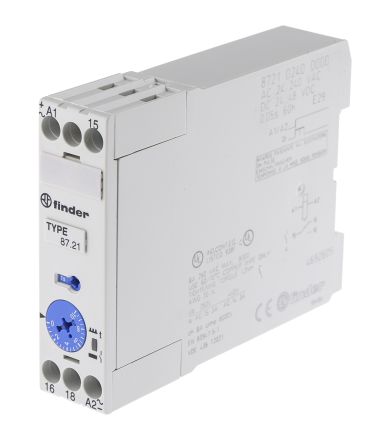

87.21.0.240.0000
| Manufacturer | |
| Description | Time Delay Relay Finder 87.21.0.240.0000, 0.05 to 10, 0.05 to 30, 0.05 to 60min, s, h Screw SPDT 400V ac 250V ac Time lag relay Passing make contact, 87.21.0.240.0000, Finder Finder 单 延时继电器, 0.05-10 min, 0.05-10 s, 0.05-60 h, 单刀双掷, 1触点, SPDT |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Output | 1 change-over (CO) | Delay Time | 50 (Recovery) ms |
| Range deg/s | 0.05 s...60 h | Voltage - Max | 400 V ac |
| Operating Mode | ON Pulse | Switch Function | Passing make contact |
| Delay Time - OFF | 小时，分钟，秒 | Voltage - Supply | 24 → 240 V ac, 24 → 48 V dc |
| Power Supply Type | External | Current - Switching | 8 A@ 250 VAC |
| Current Rating (Max) | 30 A | Switch Function/Rating | SPDT |
| Voltage - Supply (Min) | 250 V ac | ||
Mechanical
| Depth | 101mm | Width | 22.5mm |
| Length | 78.8mm | Mounting Type | DIN Rail |
| Terminal Type | Screw | Connector Type | 螺钉 |
| Width - Overall | 22.5 x 78.8 x 101 mm | Contact Material | Silver Cadmium Oxide |
| Number of Contacts | 1 | Contact Layout, Typical | NO/NC |
Product Info
| Function | 1 | Switch Type | SPDT |
| Number of Timers | 单 | Number of Macrocells | Single |
| Assembly Configuration | Snap-on fastening onto DIN-rail | ||
Environmental
| Operating Range | 0.05 → 10 min, 0.05 → 30 s, 0.05 → 60 h | Ingress Protection | IP 40 |
| Operating Temperature | +70°C | ||
