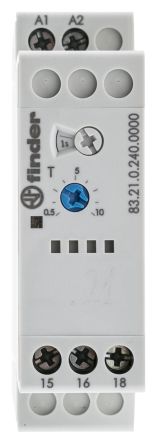

83.21.0.240.0000
| Manufacturer | |
| Description | Timer SPDT Interval 0.05s - 10d TIMERS, SPDT, 0.05SEC TO 10DAYS, 250V TimerSPDTInterval0.05s-10d Timer; 0,05s÷10days; SPDT; 250VAC/16A; 24÷240VAC; 24÷240VDC; DIN Finder 单 计时继电器, 0.05-10 d, 0.05-10 h, 0.05-10 min, 0.05-10 s, 单刀双掷, 1触点, SPDT, 24 → 240 V 交流/直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85364900 | ||
Electrical
| Output | :1 Changeover Relay | Delay Time | Days, Hours, Minutes, Seconds |
| Output Type | SPDT | Range deg/s | :FINDER - 83 Series |
| Sensing Range | 0,05s...10days | Voltage - Max | 240 V ac/dc |
| Operating Mode | Interval | Delay Time - ON | :0.05s |
| Delay to 1st Tap | :0.05s to 10days | Voltage - Supply | 24 → 240 V ac/dc |
| Power Supply Type | External | Connector Impedance | :Screw Terminals |
| Current Rating (Max) | 30 A | Voltage - Input (Max) | :240V |
| Voltage - Input (Min) | 250VAC/16A | Switch Function/Rating | SPDT |
| Voltage - Supply (Min) | 24 V ac/dc | ||
Mechanical
| Depth | 100.3mm | Width | 22.5mm |
| Length | 86.2mm | Weight | 0.102 |
| Mounting Type | DIN Rail | Contact Material | Silver Nickel |
| Number of Contacts | 1 | Number of Positions | 5 |
| Contact Layout, Typical | NO/NC | ||
Product Info
| Features | operation status indication - LED diodes | Function | :Interval |
| Electrical Life | screw terminals | Number of Units | 1 |
| Module/Board Type | timer | Number of Macrocells | Single |
| Other Specifications | :240h | Timing Adjustment Method | :Screwdriver Slot |
| Number of Positions Loaded | 1 | ||
Environmental
| Operating Range | 0.05 → 1 days, 0.05 → 1 h, 0.05 → 1 min, 0.05 → 1 s, 0.5 → 10 days, 0.5 → 10 h, 0.5 → 10 min, 0.5 → 10 s | Ingress Protection | IP20 |
| Operating Temperature | +60°C | ||
