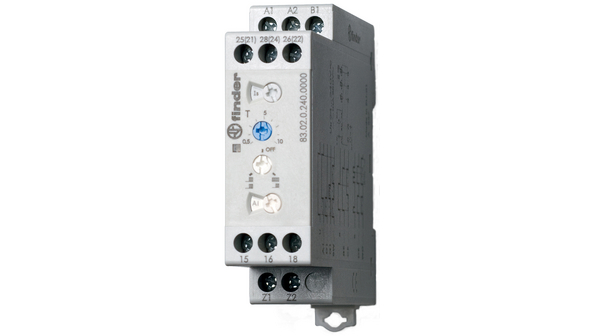

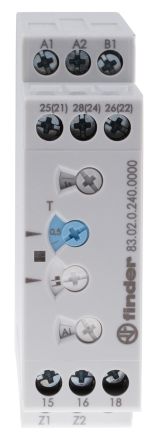

83.02.0.240.0000
| Manufacturer | |
| Description | Timer DPDT 8 function 0.05s - 10d TIMERS, DPDT, 0.05SEC TO 10DAYS, 250V TimerDPDT8function0.05s-10d Timer; 0,05s÷10days; DPDT; 250VAC/16A; 24÷240VAC; 24÷240VDC; DIN Time lag relay Multifunction, 83.02.0.240.0000, Finder Finder 多功能 计时继电器, 0.05-10 d, 0.05-10 h, 0.05-10 min, 0.05-10 s, 单刀双掷, 2触点, DPDT |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85364900 | ||
Electrical
| Output | :2 Changeover Relays | Delay Time | Days, Hours, Minutes, Seconds |
| Output Type | DPDT | Range deg/s | :FINDER - 83 Series |
| Sensing Range | 0,05s...10days | Voltage - Max | 240 V ac/dc |
| Operating Mode | Interval, Interval with Control Signal ON, OFF Delay with Control Signal, ON and OFF Delay with Control Signal, ON Delay, Pulse Delay, Symmetrical Flash, Watchdog | Delay Time - ON | :0.05s |
| Delay to 1st Tap | :0.05s to 10days | Voltage - Supply | 24 → 240 V ac/dc |
| Power Supply Type | External | Connector Impedance | :Screw Terminals |
| Current Rating (Max) | 30 A | Voltage - Input (Max) | :240V |
| Voltage - Input (Min) | 250VAC/16A | Switch Function/Rating | DPDT |
| Voltage - Supply (Min) | 24 V ac/dc | ||
Mechanical
| Depth | 100.3mm | Width | 22.5mm |
| Length | 86.2mm | Weight | 0.102 |
| Mounting Type | DIN Rail | Contact Material | Silver Nickel |
| Number of Contacts | 2 | Number of Positions | 11 |
| Contact Layout, Typical | 2NO/2NC | ||
Product Info
| Function | :Multifunction | Electrical Life | screw terminals |
| Number of Units | 1 | Module/Board Type | timer |
| Number of Macrocells | Multi Function | Other Specifications | :240h |
| Input Range (Additional) | START | Timing Adjustment Method | :Screwdriver Slot |
| Number of Positions Loaded | 8 | ||
Environmental
| Operating Range | 0.05 → 1 days, 0.05 → 1 h, 0.05 → 1 min, 0.05 → 1 s, 0.5 → 10 days, 0.5 → 10 h, 0.5 → 10 min, 0.5 → 10 s | Ingress Protection | IP20 |
| Operating Temperature | +60°C | ||
