80.11.0.240.0000
| Manufacturer | |
| Description | Time Delay Relay Finder 80.11.0.240.0000, 0.1 to 20, 0.1 to 20, 0.1 to 24min, s, h Screw SPDT 400V ac 250V ac TIMER, ON DELAY, 0.1S-24H, 250VAC Finder 单 计时继电器, 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 小时, 单刀双掷, 1触点, SPDT POWER RELAY 16A 1CO |
| Category |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Output | :1 Changeover Relay | Delay Time | 100 ms |
| Range deg/s | :FINDER - 80 Series | Voltage - Max | 400 V ac |
| Operating Mode | ON Delay | Voltage - Core | :400V |
| Delay Time - ON | :0.1s | Voltage - Supply | 24 → 240 V ac/dc |
| Power Supply Type | External | Connector Impedance | :Screw Terminals |
| Current Rating (Max) | 30 A | Current - Max/Contact | :30A |
| Voltage - Input (Max) | :240V | Switch Function/Rating | SPDT |
| Voltage - Supply (Min) | 250 V ac | ||
Mechanical
| Depth | 60.8mm | Width | 17.5mm |
| Length | 84mm | Weight | 0.11 |
| Mounting Type | DIN Rail | Terminal Type | Screw |
| Contact Material | Silver Cadmium Oxide | Number of Contacts | 1 |
| Contact Layout, Typical | NO/NC | ||
Product Info
| Function | :On-Delay | CAD Drawing | 3D CAD Model |
| Number of Macrocells | Single | Other Specifications | :24h |
| Timing Adjustment Method | :Screwdriver Slot | ||
Environmental
| Operating Range | 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 h | Operating Temperature | +50°C |
Similar Parts
821TD10H-UNI
Magnecraft / Schneider Electric
Time Delay & Timing Relays 822 Time Delay Rly SPDT, 15 Amp Rating Relay;E-Mech;Timing;Single Shot;SPDT;Cur-Rtg 15A;Ctrl-V 12-240AC/DC;DIN Rail Mnt Electromechanical Relay SPDT 15A 12V to 240VDC 12V to 240VAC DIN Rail TIME DELAY RELAY, SPDT, 10DAYS,12 to 240VAC/DC

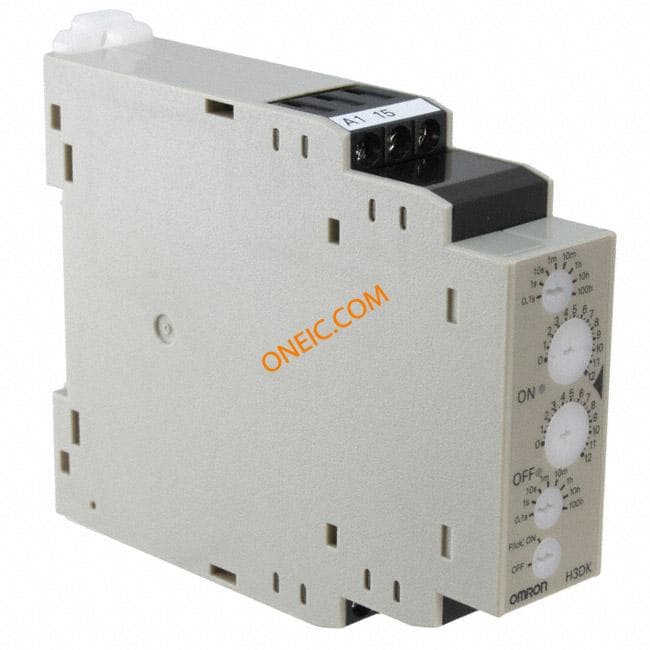

H3DK-F AC/DC24-240
