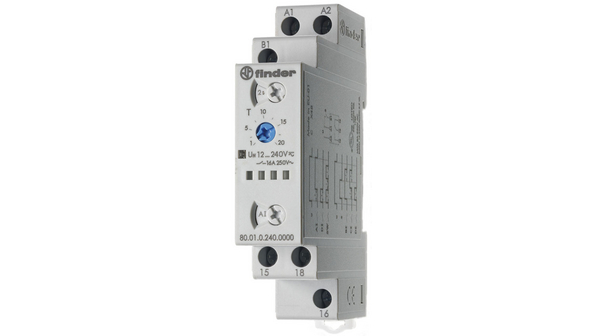

80.01.0.240.0000
| Manufacturer | |
| Description | TIMER RELAY 1CO 16A 6Timer AC Time Delay Relay Finder 80.01.0.240.0000, 0.1 to 20, 0.1 to 20, 0.1 to 24min, s, h Screw SPDT 400V ac 250V ac Timer; 0,1s÷24h; SPDT; 250VAC/16A; 12÷240VAC; 12÷240VDC; DIN Time lag relay Multifunction, 80.01.0.240.0000, Finder Finder 多功能 计时继电器, 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 小时, 单刀双掷, 1触点, SPDT |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10 | Unit Pack | 1 |
Compliance
| RoHS | Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Delay Time | 100 ms | Output Type | SPDT |
| Sensing Range | 0,1s...24h | Voltage - Max | 400 V ac |
| Operating Mode | Interval, Interval with Control Signal ON, OFF Delay with Control Signal, ON and OFF Delay with Control Signal, ON Delay, Symmetrical Flash (Starting Pulse ON) | Voltage Rating | 250VAC |
| Voltage - Supply | 12 → 240 V ac/dc | Power Supply Type | External |
| Current Rating (Max) | 30 A | Impedance @ Frequency | 8Hz |
| Voltage - Input (Min) | 250VAC/16A | Switch Function/Rating | SPDT |
| Voltage - Supply (Min) | 250 V ac | ||
Mechanical
| Depth | 60.8mm | Width | 17.5mm |
| Length | 84mm | Weight | 0.1 kg |
| Mounting Type | DIN Rail | Terminal Type | Screw |
| Contact Material | Silver Cadmium Oxide | Package Quantity | 5 |
| Number of Contacts | 1 | Contact Layout, Typical | NO/NC |
Product Info
| Spg | 5 | Matchcode | 800102400000 |
| CAD Drawing | 3D CAD Model | Display Style | 24 |
| Electrical Life | screw terminals | Number of Units | 1 |
| Module/Board Type | timer | Standard Leadtime | 8 weeks |
| Number of Macrocells | Multi Function | Number of Positions Loaded | 6 |
Environmental
| Operating Range | 0.1 → 20 min, 0.1 → 20 s, 0.1 → 24 h | Operating Temperature | +50°C |
