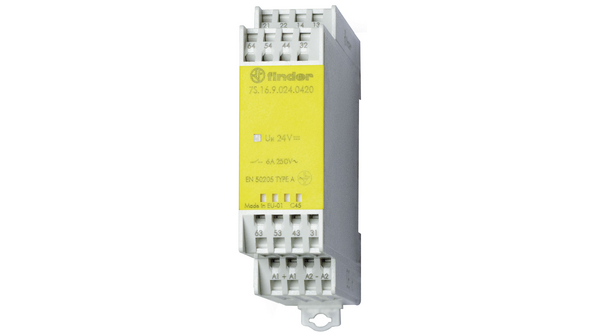

7S.16.9.024.0420
| Manufacturer | |
| Description | Relay module ,4NO+2NC 6A 24Vdc Relay module with forcibly guided contacts 24 VDC 4 NO+2 NC, 7S.16.9.024.0420, Finder Finder 4 常开/2 常闭 DIN Rail 非闭锁继电器, 6 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Coil Power | 1W | Inductance | 860 |
| Isolation Type | 6kV | Voltage - Test | 2500 |
| Voltage - Supply | 24V dc | Switching Voltage | 250V |
| Power - Peak Pulse | 1.5 kVA | Switching Capacity | 1500 VA(AC1) |
| Current - Switching | 6 A | Current Rating (Max) | 6 A |
| Power - Output Surge | 1500 VA | Voltage - Switching AC | 250V |
| Current - Peak Pulse (8/20us) | 6 A | Voltage - Protection Level (VP) (2416) | IP 20 |
Mechanical
| Size | 100.3 x 22.5 x 78.8 mm | Depth | 22.5mm |
| Height | 78.8mm | Length | 100.3mm |
| Mounting Type | DIN Rail Panel Mount | Terminal Type | Screwless |
| Contact Material | AgNi | Size / Dimension | 100.3 x 22.5 x 78.8mm |
| Termination Style | 笼式弹簧夹 | Number of Contacts | 4 NO+2 NC |
| Insulation Material | 6kV | Contact Layout, Typical | 4NO/2NC |
Product Info
| Series | 7S | Function | Y |
| Application | 安全 | Application Specifics | Safety |
Environmental
| Operational Life | 100 x 10³ 次循环 | Operating Temperature | +70°C |
| Maximum Temperature Limit | +70°C | ||
