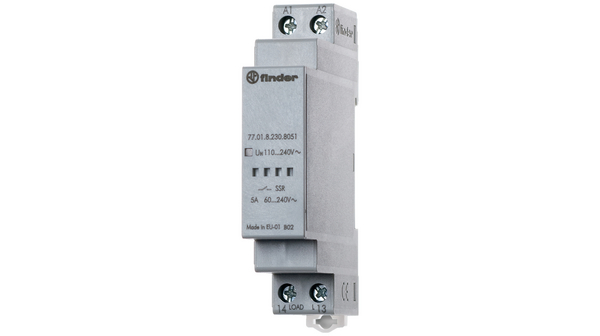

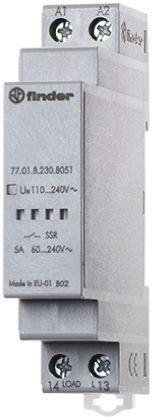

77.01.8.230.8051
| Manufacturer | |
| Description | 5A DIN Rail Panel Mount, Random SPST-NO Solid State Relay, 265V ac SSR, 5A, 230VAC/DC, RANDOM SWITCH Solid state relay single phase 90...265 VAC, 77.01.8.230.8051, Finder Finder 5 A DIN Rail安装 单极常开 固态继电器, 随机切换, 265 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (16-Dec-2013) | Tariff No | 85364900 |
Electrical
| Load Current | :5A | Turn On Time | 9 ms |
| Switching Mode | :Random Turn On | Voltage Rating | :110V AC to 240V AC |
| Voltage - Supply | :60V AC to 240V AC | Battery Pack Voltage | 48 V ac |
| Current Rating (Max) | 5 A | Voltage - Input (Min) | 240 V ac |
| Voltage - Supply (Min) | 110 V ac | Current - Off State (Max) | 3.5 mA |
| Current - Quiescent (Max) | 100 mA | Voltage - Rated AC (Phase to Phase) | :265VAC |
Mechanical
| Depth | 60.8mm | Height | 84mm |
| Length | 17.5mm | Weight | 0.099 |
| Mounting Type | DIN Rail Panel Mount | Terminal Type | Screw |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Relay Type | :Screw | Switch Type | Random |
| Control/Display Type | :AC | Other Specifications | :240VAC |
