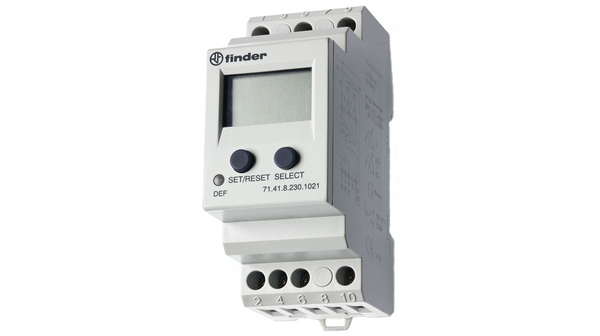

71.41.8.230.1021
| Manufacturer | |
| Description | RELAY, VOLTAGE MONITORING Programmable relays; Mounting: DIN; OUT1 type: SPDT; IP20 Voltage monitoring relay, 71.41.8.230.1021, Finder |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365080 |
Electrical
| Output Type | SPDT | Load Current | :10A |
| Voltage - Core | :250V | Voltage Rating | :230VAC |
| Number of Poles | :1 | Voltage - Supply | :230VAC |
| Current - Switching | :15A | Current Rating (Max) | :15A |
| Current - Max/Contact | :10A | Voltage - Input (Max) | :230VAC |
| Voltage - Input (Min) | 230VAC/10A | Frequency (Center/Band) | single-phase systems, too high or too low voltage |
| Power - Average Forward | :4VA | Voltage - Continuous Operating (Max) (MCOV) | :230VAC |
Mechanical
| Depth | :58mm | Width | :35mm |
| Length | :85.2mm | Weight | 0.195 |
| Lead Style | screw terminals | Size - Body | 85 x 35 x 58mm |
| Mounting Type | :DIN Rail | Size / Dimension | see |
| Contact Layout, Typical | :SPDT | ||
Product Info
| Series | :71 | Function | :Voltage Monitoring |
| Schematic | see | Display Style | LCD |
| Number of Units | 1 | Module/Board Type | programmable relays |
| Control/Display Type | :AC | ||
Environmental
| Ingress Protection | IP20 | Operating Temperature | :55°C |
