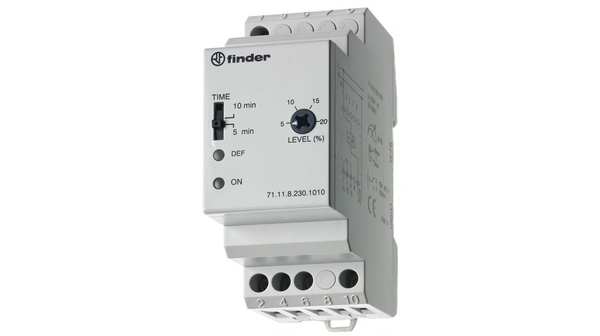

71.11.8.230.1010
| Manufacturer | |
| Description | RELAY, VOLTAGE MONITORING Voltage monitoring relay; Mounting: DIN; OUT1 type: SPDT; IP20 Mains voltage monitoring relay, 71.11.8.230.1010, Finder |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365080 |
Electrical
| Output Type | SPDT | Load Current | :10A |
| Voltage - Core | :250V | Voltage Rating | :230VAC |
| Number of Poles | :1 | Voltage - Supply | :230VAC |
| Current - Switching | :15A | Current Rating (Max) | :15A |
| Current - Max/Contact | :10A | Voltage - Input (Max) | :230VAC |
| Voltage - Input (Min) | 230VAC/10A | Frequency (Center/Band) | single-phase systems, too high or too low voltage |
| Power - Average Forward | :4VA | ||
Mechanical
| Depth | :58mm | Width | :35mm |
| Length | :85mm | Weight | 0.16 |
| Lead Style | screw terminals | Size - Body | 85 x 35 x 58mm |
| Mounting Type | :DIN Rail | Size / Dimension | see |
| Contact Layout, Typical | :SPDT | ||
Product Info
| Series | :71 | Function | :Voltage Monitoring |
| Schematic | see | Number of Units | 1 |
| Module/Board Type | voltage monitoring relay | Control/Display Type | :AC |
Environmental
| Ingress Protection | IP20 | Operating Temperature | :55°C |
