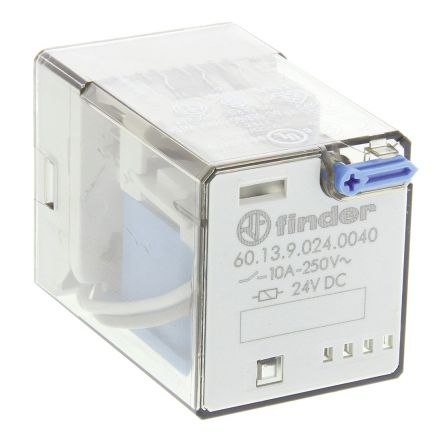

60.13.9.024.0040
| Manufacturer | |
| Description | 3PDT relay w/test button,10A 24Vdc coil 3PCO relay w/test button,10A 24Vdc coil RELAY, 3PCO, 10A, 24VDC, PLUGIN Relay: electromagnetic; 3PDT; Ucoil:24VDC; 10A/250VAC; 10A/30VDC General Purpose Relay, 3PDT 10A, 24V DC coil, AgNi contact, lockable test button & mech. Indicator Industrial relay 24 VDC 445 Ohm 1300 mW, 60.13.9.024.0040, Finder Finder 3 刀双掷 插入式 非闭锁继电器, 10 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Approval Agency | :BEAB, BSI, CSA, DEMKO, IMQ, RINA, SEMKO, SETI, UL, VDE |
Electrical
| Coil Type | :DC | Coil Power | :1.3W |
| Range deg/s | :FINDER - 60 Series | Coil Current | :53.9mA |
| Release Time | :9ms | Voltage - Max | :400V |
| Voltage - Core | :250V | Coil Resistance | 445 Ω |
| Number of Poles | :3 | Current - Output | :20A |
| Voltage - Supply | 24V dc | Switching Voltage | 400V ac |
| Current - Switching | 20 A | Dielectric Strength | :2000V |
| Current Rating (Max) | :20A | Power - Output Surge | 2.5 kVA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :10A |
| Power - Average Forward | :1.3W | AC contacts rating (at resistance load) | 10 A / 250 VAC |
| DC contacts rating (at resistance load) | 10 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 36.4mm | Width | :32.5mm |
| Height | 54.2mm | Length | 32.5mm |
| Weight | 0.06 | Lead Style | stud terminals |
| Size - Body | 36.4 x 32.5 x 54.2mm | Height (Max) | :51mm |
| Mounting Type | Plug In | Terminal Type | Through Hole |
| Contact Material | Silver Nickel | Package Quantity | 10 |
| Number of Positions | 11 | Contact Layout, Typical | 3PDT |
Product Info
| Spg | 10 | Series | :60 |
| Relay Type | :General Purpose | Relay Variant | industrial |
| Electrical Life | round socket | Number of Units | 1 |
| Other Specifications | :80% | Application Specifics | General Purpose |
| Contacts Configuration | 3PDT | ||
Environmental
| Operate Time | :9ms | Operating Temperature | +70°C |
