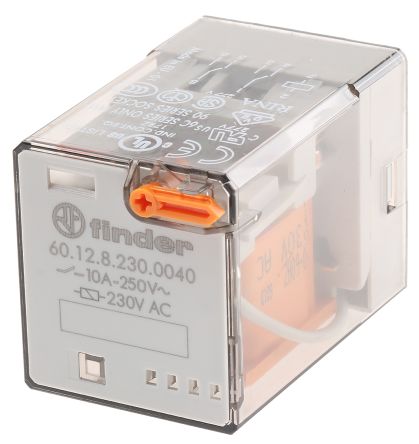

60.12.8.230.0040
| Manufacturer | |
| Description | POWER RELAY 230V 10A 2CO THT DPCO relay w/test button,10A 230Vac coil DPDT relay w/test button,10A 230Vac coil RELAY, DCPO, 10A, 230VAC Relay: electromagnetic; DPDT; Ucoil:230VAC; 10A/250VAC; 10A/30VDC Industrial relay 230 VAC 7250 Ohm 2.2 VA, 60.12.8.230.0040, Finder Finder 双刀双掷 插入式 非闭锁继电器, 10 A, 230V ac |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10 | Unit Pack | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
| Approval Agency | :BEAB, BSI, CSA, DEMKO, IMQ, RINA, SEMKO, SETI, UL, VDE | ||
Electrical
| Coil Type | MONOSTABLE | Coil Power | :2.2VA |
| Charge Time | 2 | Range deg/s | :FINDER - 60 Series |
| Coil Current | :10.5mA | Release Time | :9ms |
| Voltage - Core | :250V | Coil Resistance | 7250Ohm |
| Number of Coils | 1 | Number of Poles | :2 |
| Current - Output | 16A | Voltage - Supply | 230V |
| Switching Voltage | 250V[AC] | Current - Switching | 20 A |
| Dielectric Strength | :2000V | Voltage - Isolation | 3.6kV |
| Current Rating (Max) | :20A | Power - Output Surge | 2.5 kVA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :10A |
| Power - Average Forward | :2.2VA | Voltage - Supply (Vcc/Vdd) | :30V |
| AC contacts rating (at resistance load) | 10 A / 250 VAC | DC contacts rating (at resistance load) | 10 A / 30 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 36.4mm | Width | 36.4mm |
| Height | 54.2mm | Length | 32.5mm |
| Weight | 0.06 | Packaging | BOX |
| Lead Style | stud terminals | Size - Body | 36.4 x 32.5 x 54.2mm |
| Height (Max) | :51mm | Mounting Type | Plug In |
| Terminal Type | Through Hole | Contact Material | AgNi |
| Number of Positions | 8 | Contact Layout, Typical | DPDT |
Product Info
| Series | :60 | Matchcode | 601282300040 |
| Relay Type | :General Purpose | Technology | THT |
| Relay Variant | industrial | Electrical Life | round socket |
| Number of Units | 1 | Standard Leadtime | 12 weeks |
| Other Specifications | :80% | Application Specifics | General Purpose |
| Contacts Configuration | DPDT | ||
Environmental
| Operate Time | :9ms | Operating Temperature | +70°C |
