60.12.8.048.0040
| Manufacturer | |
| Description | DPDT relay w/test button,10A 48Vac coil DPCO relay w/test button,10A 48Vac coil RELAY, DPCO, 10A, 48VAC Relay: electromagnetic; DPDT; Ucoil:48VAC; 10A/250VAC; 10A/30VDC Industrial relay 48 VAC 290 Ohm 2.2 VA, 60.12.8.048.0040, Finder Finder 双刀双掷 插入式 非闭锁继电器, 10 A, 48V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Approval Agency | :BEAB, BSI, CSA, DEMKO, IMQ, RINA, SEMKO, SETI, UL, VDE |
Electrical
| Coil Type | :AC | Coil Power | :2.2VA |
| Range deg/s | :FINDER - 60 Series | Coil Current | :47mA |
| Release Time | :9ms | Voltage - Core | :250V |
| Coil Resistance | 290 Ω | Number of Poles | :2 |
| Current - Output | :20A | Voltage - Supply | 48V ac |
| Switching Voltage | 400V ac | Current - Switching | 20 A |
| Dielectric Strength | :2000V | Current Rating (Max) | :20A |
| Power - Output Surge | 2.5 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :10A | Power - Average Forward | :2.2VA |
| Voltage - Supply (Vcc/Vdd) | :30V | AC contacts rating (at resistance load) | 10 A / 250 VAC |
| DC contacts rating (at resistance load) | 10 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 36.4mm | Width | :32.5mm |
| Height | 54.2mm | Length | 32.5mm |
| Weight | 0.08 | Lead Style | stud terminals |
| Size - Body | 36.4 x 32.5 x 54.2mm | Height (Max) | :51mm |
| Mounting Type | Plug In | Terminal Type | Through Hole |
| Contact Material | Silver Nickel | Number of Positions | 8 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Series | :60 | Relay Type | :General Purpose |
| Relay Variant | industrial | Electrical Life | round socket |
| Number of Units | 1 | Other Specifications | :80% |
| Application Specifics | General Purpose | Contacts Configuration | DPDT |
Environmental
| Operate Time | :9ms | Operating Temperature | +70°C |
Similar Parts

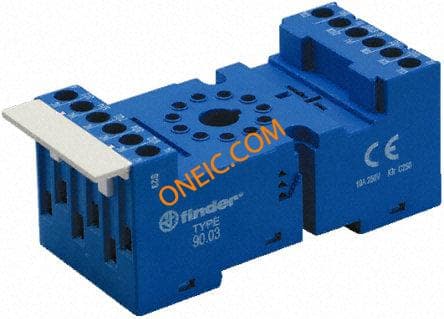

90.02SMA
