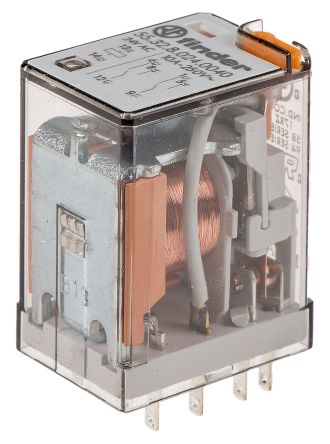

点击放大查看
5532.8024.0040
| Manufacturer | |
| Description | RELAY 55. 2RT/24 VAC Finder 双刀双掷 插入式 非闭锁继电器, 20 A, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Coil Power | 1.5VA | Isolation Type | 4kV |
| Coil Resistance | 190 Ω | Voltage - Supply | 24V ac |
| Switching Voltage | 400V ac | Power - Peak Pulse | 2.5 kVA |
| Current - Switching | 20 A | Current Rating (Max) | 20 A |
| Power - Output Surge | 2.5 kVA | Voltage - Switching AC | 400V 交流 |
| Current - Peak Pulse (8/20us) | 20 A | ||
Mechanical
| Depth | 20.7mm | Height | 42.8mm |
| Length | 27.7mm | Mounting Type | PCB |
| Terminal Type | Tab | Contact Material | Silver Nickel |
| Size / Dimension | 27.7 x 20.7 x 42.8mm | Termination Style | 快速连接 |
| Insulation Material | 4kV | Contact Layout, Typical | DPDT |
Product Info
| Function | Y | Application | 通用 |
| Application Specifics | Power | ||
Environmental
| Operating Temperature | +85°C | Maximum Temperature Limit | +85°C |
