55.34.8.024.0040
| Manufacturer | |
| Description | 4PDT mini plug-in relay,7A 24Vac coil RELAY, 4PCO, 24VAC Relay: electromagnetic; 4PDT; Ucoil:24VAC; 7A/250VAC; 7A/30VDC Industrial relay 24 VAC 190 Ohm 1.5 VA, 55.34.8.024.0040, Finder Finder 4 刀双掷 插入式 非闭锁继电器, 7 A, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
| Approval Agency | :CSA, IMQ, SEMKO, SEV, UL, VDE | ||
Electrical
| Coil Type | :AC | Coil Power | :1.5VA |
| Range deg/s | :FINDER - 55 Series | Coil Current | :53mA |
| Release Time | :3ms | Voltage - Core | :250V |
| Coil Resistance | 190 Ω | Number of Poles | :4 |
| Current - Output | :15A | Voltage - Supply | 24V ac |
| Switching Voltage | 400V ac | Current - Switching | 15 A |
| Power - Output Surge | 1.75 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :7A | Power - Average Forward | :1.5VA |
| AC contacts rating (at resistance load) | 7 A / 250 VAC | DC contacts rating (at resistance load) | 7 A / 30 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 20.7mm | Width | :20.6mm |
| Height | 42.8mm | Length | 27.7mm |
| Weight | 0.032 | Lead Style | 2.8x0.5mm connectors |
| Size - Body | 27.7 x 20.7 x 35.8mm | Height (Max) | :27.5mm |
| Mounting Type | PCB | Terminal Type | Tab |
| Contact Material | Silver Nickel | Package Quantity | 50 |
| Contact Layout, Typical | 4PDT | ||
Product Info
| Spg | 50 | Series | :5534 |
| Relay Type | :General Purpose | CAD Drawing | 3D CAD Model |
| Relay Variant | industrial | Number of Units | 1 |
| Other Specifications | :80% | Application Specifics | General Purpose |
| Contacts Configuration | 4PDT | ||
Environmental
| Operate Time | :9ms | Operating Temperature | +85°C |
Similar Parts
94.14SMA
Finder

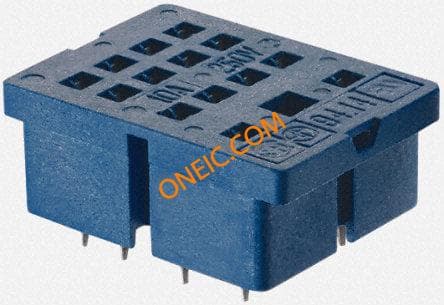

Relay Socket For Use With 55.32, 55.34 SOCKET & CLIP, PCB, 4PCO, RELAY PCBSOCKET+CLIP 继电器插座, 适用于55.32-55.34-85.04
$13.4260
Details
99.01.3.000.00
Finder

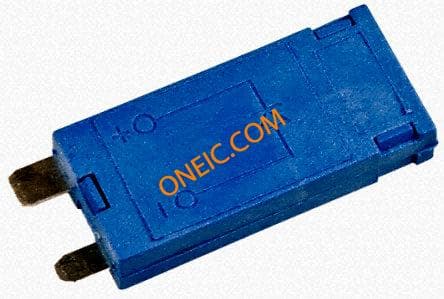

Socket Mount Interface Relay Module DIODE MODULE DIODEMODULE Plug In 接口继电器模块, 220V dc
$18.5003
Details
94.74SMA
Finder

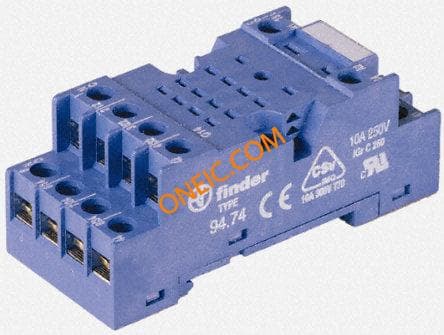

Panel Mount Interface Relay Module SOCKET RELAY, 55.34 SERIES 继电器插座, 适用于55.34
