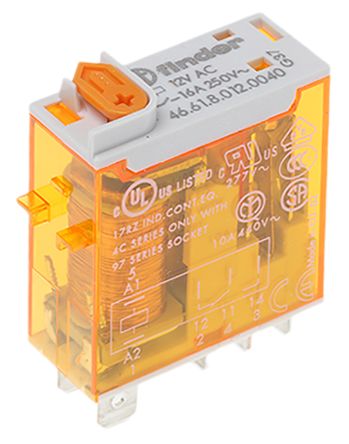

4661.8012.0040
| Manufacturer | |
| Description | INDUSTRIAL RELAY 46 SERIES INDUSTRIALRELAY46SERIES Finder 单刀双掷 插入式 非闭锁继电器, 25 A, 12V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Coil Power | 0.5W | Isolation Type | 6kV |
| Coil Resistance | 80 Ω | Voltage - Supply | 12V ac |
| Switching Voltage | 440V ac | Power - Peak Pulse | 4 kVA |
| Current - Switching | 25 A | Current Rating (Max) | 25 A |
| Power - Output Surge | 4000 VA | Voltage - Switching AC | 440V 交流 |
| Current - Peak Pulse (8/20us) | 25 A | ||
Mechanical
| Depth | 12.4mm | Height | 39.3mm |
| Length | 29mm | Mounting Type | Plug In |
| Terminal Type | Tab | Contact Material | Silver Nickel |
| Size / Dimension | 29 x 12.4 x 39.3mm | Termination Style | 快速连接 |
| Insulation Material | 6kV | Contact Layout, Typical | SPDT |
Product Info
| Function | Y | Application | 通用 |
| Application Specifics | Compact | ||
Environmental
| Operating Temperature | +70°C | Maximum Temperature Limit | +70°C |
