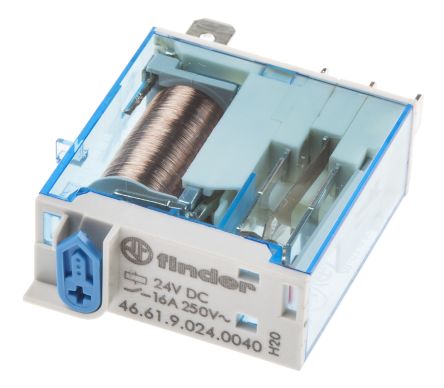

46.61.9.024.0040
| Manufacturer | |
| Description | IndustMinRelay 1CO 16A THT 24V Plug in relay w/ flag, 16A, 24Vdc, SPDT RELAY, SPCO, 16A, 24VDC 16ASPCOPLUG-INRELAY Relay: electromagnetic; SPDT; Ucoil:24VDC; 16A/250VAC; 16A/30VDC Industrial relay 24 VDC 1200 Ohm 500 mW, 46.61.9.024.0040, Finder Finder 单刀双掷 插入式 非闭锁继电器, 16 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
| Approval Agency | :CSA, GOST, RINA, VDE | ||
Electrical
| Coil Type | MONOSTABLE | Coil Power | 0.5W |
| Charge Time | 1 | Range deg/s | :FINDER - 46 Series |
| Coil Current | :20mA | Release Time | :5ms |
| Isolation Type | 6kV | Voltage - Core | :250V |
| Coil Resistance | 1200Ohm | Number of Coils | 1 |
| Number of Poles | :1 | Current - Output | 16A |
| Voltage - Supply | 24V | Switching Voltage | 230V[AC] |
| Current - Switching | 25 A | Voltage - Breakdown | :1000VAC |
| Voltage - Isolation | 6kV | Power - Output Surge | 4000 VA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :25A |
| Voltage - Input (Min) | 17.5V DC | Power - Average Forward | :500mW |
| Contact Rating (Current) | :16A | AC contacts rating (at resistance load) | 16 A / 250 VAC |
| DC contacts rating (at resistance load) | 16 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 12.4mm | Width | 12.4mm |
| Height | 32.8mm | Length | 29mm |
| Weight | 0.018 | Packaging | TUBE |
| Size - Body | 29 x 12.4 x 32.8mm | Height (Max) | :32.8mm |
| Pitch - Post | 5.2mm | Mounting Type | Plug In |
| Terminal Type | Tab | Number of Pins | :5 |
| Contact Material | AgNi | Package Quantity | 5 |
| Size / Dimension | see | Number of Positions | :100000 |
| Contact Layout, Typical | SPDT | ||
Product Info
| Spg | 5 | Series | :46 |
| Matchcode | 466190240040 | Relay Type | :Miniature |
| Technology | THT | Relay Variant | miniature, industrial |
| Number of Units | 1 | Standard Leadtime | 9 weeks |
| Output Configuration | see | Application Specifics | Compact |
| Contacts Configuration | SPDT | ||
Environmental
| Operate Time | :15ms | Mechanical Life | 1000000cycles |
| Switching Cycles | :10000000 | Operating Temperature | +70°C |
