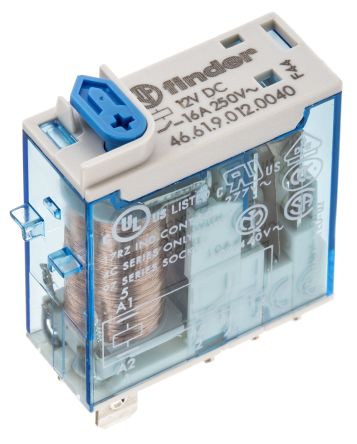

46.61.9.012.0040
| Manufacturer | |
| Description | Plug in relay w/ flag, 16A, 12Vdc, SPDT RELAY, SPCO, 16A, 12VDC Industrial relay 12 VDC 300 Ohm 500 mW, 46.61.9.012.0040, Finder Finder 单刀双掷 插入式 非闭锁继电器, 25 A, 12V dc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
| Approval Agency | :CSA, GOST, RINA, VDE | ||
Electrical
| Coil Type | :DC | Coil Power | 0.5W |
| Range deg/s | :FINDER - 46 Series | Coil Current | :40mA |
| Release Time | :5ms | Isolation Type | 6kV |
| Voltage - Core | :250V | Coil Resistance | 300 Ω |
| Number of Poles | :1 | Current - Output | :25A |
| Voltage - Supply | 12V dc | Switching Voltage | 250V ac |
| Current - Switching | 25 A | Voltage - Breakdown | :1000VAC |
| Power - Output Surge | 4000 VA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :25A | Power - Average Forward | :500mW |
| Contact Rating (Current) | :16A | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 12.4mm | Width | :29mm |
| Height | 32.8mm | Length | 29mm |
| Weight | 0.018 | Height (Max) | :32.8mm |
| Mounting Type | Plug In | Terminal Type | Tab |
| Number of Pins | :5 | Contact Material | Silver Nickel |
| Number of Positions | :100000 | Contact Layout, Typical | SPDT |
Product Info
| Series | :46 | Relay Type | :Miniature |
| Application Specifics | Compact | ||
Environmental
| Operate Time | :15ms | Switching Cycles | :10000000 |
| Operating Temperature | +70°C | ||
