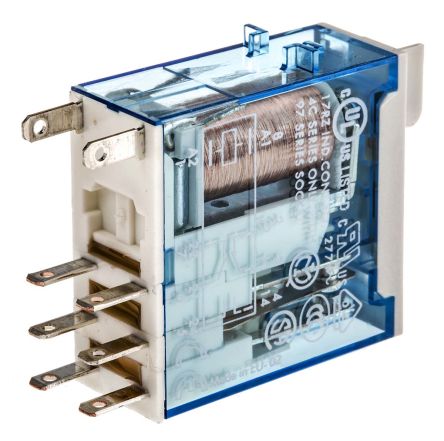

46.52.9.024.0040
| Manufacturer | |
| Description | IndustMinRelay 2CO 8A THT 24V Plug in relay w/ flag, 8A, 24Vdc, DPDT RELAY, DPCO, 8A, 24VDC Relay: electromagnetic; DPDT; Ucoil:24VDC; 8A/250VAC; 8A/30VDC Industrial relay 24 VDC 1200 Ohm 500 mW, 46.52.9.024.0040, Finder Finder 双刀双掷 插入式 非闭锁继电器, 8 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
| Approval Agency | :CSA, GOST, RINA, VDE | ||
Electrical
| Coil Type | MONOSTABLE | Coil Power | 0.5W |
| Charge Time | 1 | Range deg/s | :FINDER - 46 Series |
| Coil Current | :20mA | Release Time | :3ms |
| Isolation Type | 6kV | Voltage - Core | :250V |
| Coil Resistance | 1200Ohm | Number of Coils | 1 |
| Number of Poles | :2 | Current - Output | 16A |
| Voltage - Supply | 24V | Switching Voltage | 230V[AC] |
| Current - Switching | 8 A | Voltage - Breakdown | :1000VAC |
| Voltage - Isolation | 6kV | Power - Output Surge | 2 kVA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :15A |
| Voltage - Input (Min) | 17.5V DC | Voltage - Switching DC | 15V dc |
| Power - Average Forward | :500mW | Contact Rating (Current) | :8A |
| AC contacts rating (at resistance load) | 8 A / 250 VAC | DC contacts rating (at resistance load) | 8 A / 30 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 12.4mm | Width | 12.4mm |
| Height | 32.8mm | Length | 29mm |
| Weight | 0.018 | Packaging | TUBE |
| Size - Body | 29 x 12.4 x 32.8mm | Height (Max) | :32.8mm |
| Pitch - Post | 5mm | Mounting Type | Plug In |
| Terminal Type | Tab | Number of Pins | :8 |
| Contact Material | AgNi | Package Quantity | 10 |
| Size / Dimension | see | Number of Positions | :100000 |
| Contact Layout, Typical | DPDT | ||
Product Info
| Spg | 10 | Series | :46 |
| Matchcode | 465290240040 | Relay Type | :Miniature |
| Technology | THT | Relay Variant | miniature, industrial |
| Number of Units | 1 | Standard Leadtime | 9 weeks |
| Output Configuration | see | Application Specifics | Compact |
| Contacts Configuration | DPDT | ||
Environmental
| Operate Time | :10ms | Mechanical Life | 1000000cycles |
| Switching Cycles | :10000000 | Operating Temperature | +70°C |
