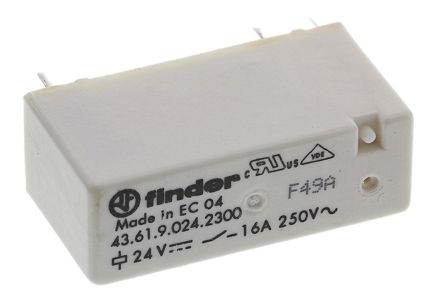

43.61.9.024.2300
| Manufacturer | |
| Description | PRINT RELAY 24V 16A 1NO THT PCB,relay,SPNO,16A contact,24Vdc coil RELAY, PCB, 16A, SPST-NO, 24VDC Finder 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 20 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
Electrical
| Coil Type | MONOSTABLE | Coil Power | 0.4W |
| Range deg/s | :FINDER - 43 Series | Coil Current | :17.1mA |
| Isolation Type | 6kV | Coil Resistance | 2200Ohm |
| Current - Output | 8A | Voltage - Supply | 24V |
| Switching Voltage | 400V[AC] | Current - Switching | 16 A |
| Power - Output Surge | 2500 VA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :25A | Power - Average Forward | :400mW |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 10.2mm | Width | 10.2mm |
| Height | 15.4mm | Length | 30.5mm |
| Weight | 0.01 | Packaging | TUBE |
| Contact Type | 1 | Height (Max) | :15.4mm |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Contact Material | AgCdO | Contact Layout, Typical | SPST-NO |
Product Info
| Matchcode | 436190242300 | Relay Type | :PCB |
| Standard Leadtime | 21 weeks | ||
Environmental
| Operating Temperature | +85°C | ||
