41.81.7.024.9024
| Manufacturer | |
| Description | 5A PCB Mount, DC Switching SPST-NO Solid State Relay, 24V dc SSR, 5A, DC SWITCHING, 24VDC Relay: solid state; Ucntrl:14÷32VDC; 5A; 1.5÷35VDC; -20÷60°C PCB power relay 24 VDC, 41.81.7.024.9024, Finder Finder 5 A PCB（印刷电路板）安装安装 单极常开 固态继电器, 直流切换, 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (16-Dec-2013) | Tariff No | 85364900 |
Electrical
| Range deg/s | :FINDER - 41 Series | Load Current | :5A |
| Turn On Time | 0.05 ms | Current - Output | :40A |
| Voltage - Supply | :24VDC | Switching Voltage | 1.5...35V DC |
| Battery Pack Voltage | 1.5 V dc | Current Rating (Max) | 5 A |
| Current - Max/Contact | :40A | Voltage - Input (Min) | 32 V dc |
| Voltage - Supply (Min) | 14 V dc | Current - Off State (Max) | 0.01 mA |
| Current - Quiescent (Max) | 1 mA | Voltage - Supply, Digital | :24V |
| Voltage - Supply (Vcc/Vdd) | :24V | ||
Mechanical
| Depth | 12.7mm | Width | :29mm |
| Height | 15.7mm | Length | 29mm |
| Weight | 0.01 | Height (Max) | :15.7mm |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Material Finish | :- | Size / Dimension | see |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Relay Type | :Through Hole | CAD Drawing | 3D CAD Model |
| Switch Type | DC Switching | Relay Variant | 1-phase |
| Number of Units | 1 | Control/Display Type | :DC |
Environmental
| Operating Temperature | -20...60°C | ||
Similar Parts
6065
Keystone Electronics
Circuit Board Hardware - PCB JACK (BLUE) JACK TEST HORZ LOW PRO BLUE AU
$5.8072
Details

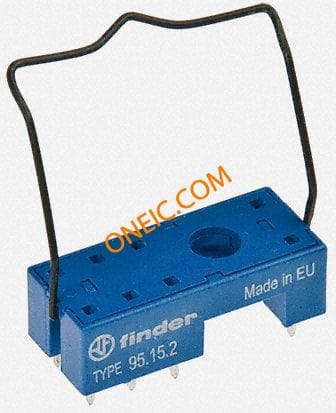

95.15.2SMA
