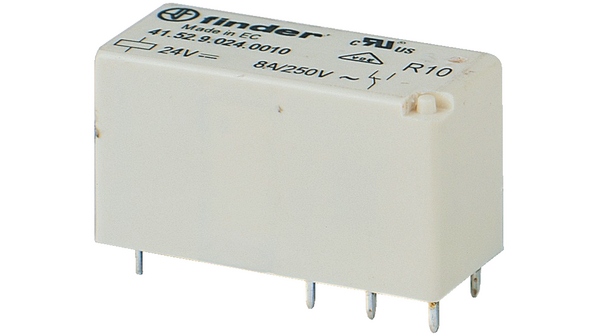

41.52.9.024.0010
| Manufacturer | |
| Description | POWER RELAY 24V 8A 1CO THT PCB relay, DPDT 8A 24Vdc coil RELAY, DPCO, 24VDC, 8A, THT Relay: electromagnetic; DPDT; Ucoil:24VDC; 8A/250VAC; 8A/30VDC PCB power relay 24 VDC 400 mW, 41.52.9.024.0010, Finder Finder 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 20 |
Compliance
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
Electrical
| Coil Type | MONOSTABLE | Coil Power | 400mW |
| Charge Time | 2 | Range deg/s | :FINDER - 41 Series |
| Coil Current | :16.7mA | Release Time | :4ms |
| Voltage - Core | :400V | Coil Resistance | 360Ohm |
| Number of Coils | 1 | Current - Output | 8A |
| Voltage - Supply | 24V | Switching Voltage | 400V[AC] |
| Voltage - Isolation | 6kV | Current Rating (Max) | :8A |
| Power - Output Surge | 2 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :15A | Voltage - Input (Min) | 16.8V DC |
| Power - Average Forward | :400mW | AC contacts rating (at resistance load) | 8 A / 250 VAC |
| DC contacts rating (at resistance load) | 8 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 12.5mm | Width | 15.7mm |
| Height | 15.7mm | Length | 29mm |
| Weight | 0.01 | Packaging | TUBE |
| Size - Body | 29 x 12.5 x 15.7mm | Height (Max) | :15.7mm |
| Pitch - Post | 5mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Contact Material | AgNi |
| Package Quantity | 20 | Contact Layout, Typical | DPDT |
Product Info
| Spg | 20 | Matchcode | 415290240010 |
| Relay Type | :General Purpose | Technology | THT |
| Relay Variant | miniature | Number of Units | 1 |
| Standard Leadtime | 9 weeks | Application Specifics | Power |
| Contacts Configuration | DPDT | ||
Environmental
| Operate Time | :5ms | Mechanical Life | 3000000cycles |
| Operating Temperature | +85°C | ||
