38.51.7.024.0050

Manufacturer	Finder S.p.A.
Description	SPDT DIN Rail Panel Mount Interface Relay Module, 6A, 250V ac RELAY, SPDT-CO, SCREW TERM, 6A, 24VDC IF-RELAY3824VDC Relay: interface; SPDT; Ucoil:24VDC; 6A; 6A/250VAC; 6A/30VDC; IP20 Coupling relay, series 38, 38.51.7.024.0050, Finder 单刀双掷 DIN Rail 接口继电器模块, 6A, 24V dc
Category	Industrial Power Components and RelaysInterface Relay Modules & AccessoriesInterface Relay Modules

对参数有疑问？问 AI 助手

Compliance

RoHS	RoHS Compliant Part	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85364900

Electrical

Release Time	:6ms	Turn On Time	5ms
Voltage Rating	24V dc	Coil Resistance	:3.35kohm
Delay Time - OFF	6ms	Voltage - Supply	:24V
Switching Voltage	max 400V AC, max 220V DC	Resistance - Input	2.307kΩ
Current - Switching	:10A	Current Rating (Max)	6A
Current - Max/Contact	:10A	Voltage - Supply (Min)	250V ac
Power - Average Forward	:300mW	Current - Input Bias (Max)	10.4mA
AC contacts rating (at resistance load)	6 A / 250 VAC	DC contacts rating (at resistance load)	6 A / 30 VDC
Voltage - Rated AC (Phase to Ground/Neutral)	:250V

Mechanical

Depth	75.6mm	Width	:6.2mm
Height	87.9mm	Length	6.2mm
Weight	0.028	Lead Style	screw terminals
Size - Body	87.9 x 6.2 x 75.6mm	Termination	:Screw
Height (Max)	:87.9mm	Mounting Type	DIN Rail Panel Mount
Terminal Type	Screw	Contact Material	Silver Nickel
Package Quantity	10	Size / Dimension	see
Contact Layout, Typical	SPDT

Product Info

Spg	10	Function	LED
Schematic	see	Relay Type	38.51
CAD Drawing	3D CAD Model	Relay Variant	Relay set
Number of Units	1	Contacts Configuration	SPDT

Environmental

Operate Time	:5ms	NEMA Frame Size	:IP20
Ingress Protection	IP20	Operating Temperature	+70°C

Similar Parts

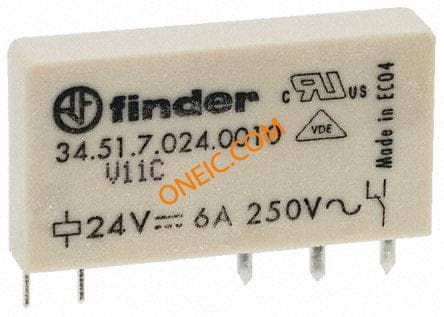

34.51.7.024.0010

FINDER

POWER RELAY 24V 6A 1CO THT Interface 34 series 24Vdc relay RELAY, SPCO, 6A, 24VDC, PCB Relay: electromagnetic; SPDT; Ucoil:24VDC; 6A/250VAC; 6A/30VDC promotion General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1C SPDT Current: 6 Amps Mounting: PC Board Operating Function: Single Side Stable Finder 单刀双掷 PCB（印刷电路板）安装非闭锁继电器, 24V dc

$22.5767

Details

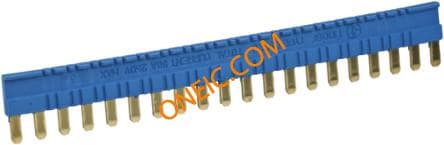

093.20
