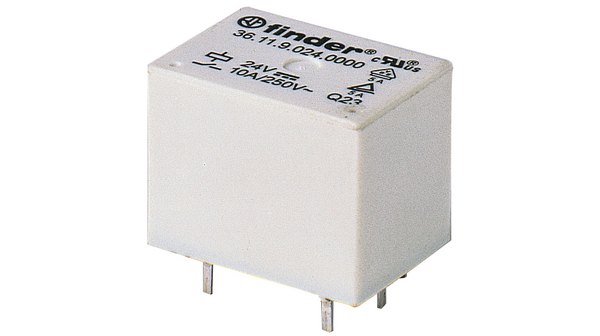

36.11.9.024.4001
| Manufacturer | |
| Description | POWER RELAY 24V 10A 1CO THT SPDT min PCB relay,10A 24Vdc 360mW coil RELAY, PCB, SPCO, 24VDC, 10A Relay: electromagnetic; SPDT; Ucoil:24VDC; 10A/250VAC; 10A/30VDC PCB power relay 24 VDC 360 mW, 36.11.9.024.4001, Finder |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Unit Pack | 25 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
| Approval Agency | VDE C/US | Protection Features | RT III |
Electrical
| Coil Type | MONOSTABLE | Coil Power | 360mW |
| Charge Time | 1 | Range deg/s | :FINDER - 36 Series |
| Coil Current | :15mA | Release Time | :3ms |
| Isolation Type | 4kV | Coil Resistance | 400Ohm |
| Number of Coils | 1 | Current - Output | 10A |
| Voltage - Supply | 24V | Switching Voltage | 250V[AC] |
| Current - Switching | 10 A | Voltage - Isolation | 1kV |
| Power - Output Surge | 2.5 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :10A | Voltage - Input (Min) | 18V DC |
| Power - Average Forward | :360mW | AC contacts rating (at resistance load) | 10 A / 250 VAC |
| DC contacts rating (at resistance load) | 10 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 15.5mm | Width | 15.5mm |
| Height | 17.5mm | Length | 21.5mm |
| Weight | 0.01 | Packaging | TRAY |
| Lead Style | see | Size - Body | 19 x 15.5 x 15.5mm |
| Height (Max) | :15.5mm | Pitch - Post | 2mm |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Contact Material | AgCdO | Size / Dimension | see |
| Contact Layout, Typical | SPDT | ||
Product Info
| Matchcode | 361190244001 | Relay Type | :Miniature |
| Technology | THT | Relay Variant | miniature |
| Number of Units | 1 | Standard Leadtime | 25 weeks |
| Application Specifics | Compact | Contacts Configuration | SPDT |
Environmental
| Operate Time | :9ms | Operating Temperature | +85°C |
