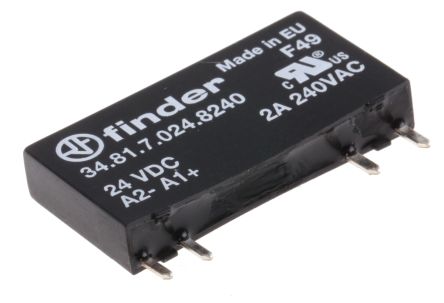

34.81.7.024.8240
| Manufacturer | |
| Description | 2A PCB Mount, Zero Crossing SPST-NO Solid State Relay, 240V ac SSR, 2A, 24VDC Relay: solid state; SPST-NO; Ucntrl:16÷30VDC; 2A; 12÷240VAC Solid State Relay Control Voltage: 24 VDC Load Current: 2 Amps Load Voltage: 240 VAC Output Configuration: 1A NO Mounting: PC Board Finder 2 A PCB（印刷电路板）安装安装 单极常开 固态继电器, 零交叉切换, 240 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
| Approval Agency | :UL Recognised | ||
Electrical
| Output Type | :AC | Load Current | :2A |
| Turn On Time | 12 ms | Switching Mode | :Zero Crossing |
| Voltage Rating | :16V DC to 30V DC | Input Impedance | :3200ohm |
| Current - Output | :7mA | Voltage - Supply | :24V |
| Switching Voltage | 12...240V AC | Battery Pack Voltage | 12 V ac |
| Current Rating (Max) | 2 A | Must Release Voltage | :10V |
| Voltage - Input (Min) | 30 V | Voltage - Supply (Max) | :30VDC |
| Voltage - Supply (Min) | 16 V | Current - Off State (Max) | 1.5 mA |
| Current - Quiescent (Max) | 22 mA | Current - Average Rectified (Io) | :40A |
| Voltage - Rated AC (Phase to Phase) | :240VAC | Voltage - Continuous Operating (Max) (MCOV) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :12VAC | ||
Mechanical
| Depth | 15mm | Width | :28mm |
| Height | 5mm | Length | 28mm |
| Weight | 0.004 | Mounting Type | PCB |
| Terminal Type | Screwless | Package / Case | SIP4 |
| Material Finish | :- | Package Quantity | 10 |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Spg | 10 | Series | :34 |
| Relay Type | :Through Hole | Switch Type | Zero Crossing |
| Relay Variant | 1-phase | Number of Units | 1 |
| Control/Display Type | :DC | Other Specifications | :240V |
| Contacts Configuration | SPST-NO | ||
Environmental
| Operating Temperature | :60°C | ||
