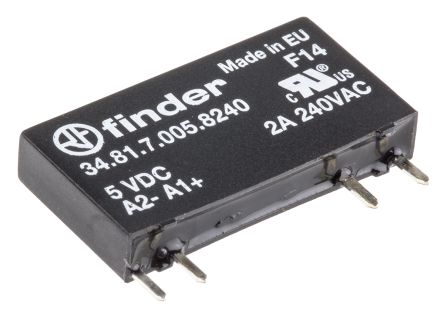

34.81.7.005.8240

Manufacturer	Finder S.p.A.
Description	2A PCB Mount, Zero Crossing SPST-NO Solid State Relay, 240V ac SSR, 2A, 5VDC Solid State Relay Control Voltage: 5 VDC Load Current: 2 Amps Load Voltage: 240 VAC Output Configuration: 1A NO Mounting: PC Board Finder 2 A PCB（印刷电路板）安装安装单极常开固态继电器, 零交叉切换, 240 V 交流
Category	Industrial Power Components and RelaysSolid State RelaysSolid State Relays

对参数有疑问？问 AI 助手

Compliance

SVHC	:No SVHC (20-Jun-2013)	Tariff No	85364900
Approval Agency	:UL Recognised

Electrical

Output Type	:AC	Load Current	:2A
Turn On Time	12 ms	Switching Mode	:Zero Crossing
Voltage Rating	:3.5V DC to 10V DC	Input Impedance	:416ohm
Current - Output	:12mA	Voltage - Supply	:5V
Battery Pack Voltage	12 V ac	Current Rating (Max)	2 A
Must Release Voltage	:1V	Voltage - Input (Min)	10 V
Voltage - Supply (Max)	:10VDC	Voltage - Supply (Min)	3.5 V
Current - Off State (Max)	1.5 mA	Current - Quiescent (Max)	22 mA
Current - Average Rectified (Io)	:40A	Voltage - Rated AC (Phase to Phase)	:240VAC
Voltage - Continuous Operating (Max) (MCOV)	:12V	Voltage - Rated AC (Phase to Ground/Neutral)	:12VAC

Mechanical

Depth	15mm	Width	:28mm
Height	5mm	Length	28mm
Weight	0.004	Mounting Type	PCB
Terminal Type	Screwless	Package / Case	SIP4
Material Finish	:-	Contact Layout, Typical	SPST-NO

Product Info

Series	:34	Relay Type	:Through Hole
Switch Type	Zero Crossing	Control/Display Type	:DC

Environmental

Operating Temperature

:60°C
