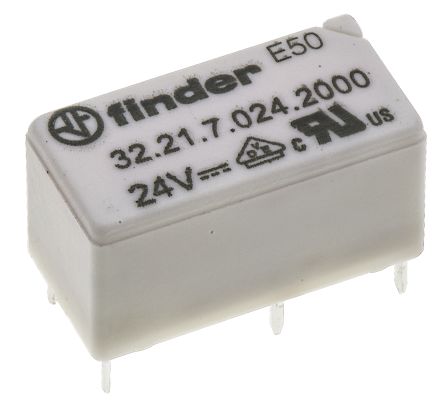

32.21.7.024.2000
| Manufacturer | |
| Description | POWER RELAY 24V 6A 1CO THT SPDT miniature PCB relay,6A 24Vdc 1500W RELAY, PCB, 24VDC Relay: electromagnetic; SPDT; Ucoil:24VDC; 6A/250VAC; 3A/30VDC General Purpose Relays Coil Voltage: 24 VDC Contact Configuration: 1C SPDT Current: 6 Amps Mounting: PC Board Operating Function: Single Side Stable Finder 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 6 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 20 | Unit Pack | 20 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Leadfree Defin | RoHS-conform |
| Approval Agency | :GOST, VDE | ||
Electrical
| Coil Type | MONOSTABLE | Coil Power | 200mW |
| Charge Time | 1 | Range deg/s | :FINDER - 32 Series |
| Coil Current | :8.3mA | Release Time | :4ms |
| Voltage - Core | :400V | Coil Resistance | 2880Ohm |
| Current - Surge | :15A | Number of Coils | 1 |
| Number of Poles | :1 | Current - Output | 6A |
| Voltage - Supply | 24V | Switching Voltage | 400V[AC] |
| Current - Switching | 6 A | Voltage - Breakdown | :1000VAC |
| Voltage - Isolation | 5kV | Current Rating (Max) | :6A |
| Power - Output Surge | 1.5 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :6A | Power - Average Forward | :200mW |
| AC contacts rating (at resistance load) | 6 A / 250 VAC | DC contacts rating (at resistance load) | 3 A / 30 VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 10mm | Width | 10.2mm |
| Height | 10.7mm | Length | 20.3mm |
| Weight | 0.006 | Packaging | TUBE |
| Size - Body | 20 x 10.7 x 10mm | Height (Max) | :10.7mm |
| Pitch - Post | 7.62mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Number of Pins | :5 |
| Material Finish | :- | Contact Material | AgCdO |
| Number of Positions | :100000 | Contact Layout, Typical | SPDT |
Product Info
| Series | :32 | Matchcode | 322170242000 |
| Relay Type | :Subminiature | Technology | THT |
| Relay Variant | miniature | Number of Units | 1 |
| Standard Leadtime | 8 weeks | Application Specifics | Compact |
| Contacts Configuration | SPDT | ||
Environmental
| Operate Time | :6ms | Switching Cycles | :20000000 |
| Ingress Protection | IP67 | Operating Temperature | +85°C |
