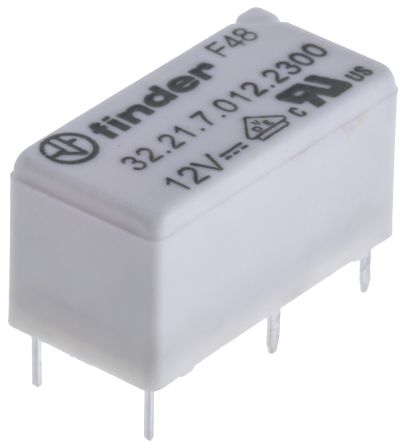

32.21.7.012.2300
| Manufacturer | |
| Description | SPST-NO min PCB relay,6A 12Vdc 1500W RELAY, PCB, 6A, SPST-NO, 12V Relay: electromagnetic; SPST-NO; Ucoil:12VDC; 6A/250VAC; 3A/30VDC General Purpose Relays Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 6 Amps Mounting: PC Board Operating Function: Single Side Stable Finder 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 6 A, 12V dc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (16-Dec-2013) | Tariff No | 85364900 |
Electrical
| Coil Type | :DC Sensitive | Coil Power | 200mW |
| Range deg/s | :FINDER - 32 Series | Coil Current | :16mA |
| Coil Resistance | 720 Ω | Current - Output | :15A |
| Voltage - Supply | 12V dc | Switching Voltage | 250V ac |
| Current - Switching | 6 A | Power - Output Surge | 1.5 kVA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :15A |
| Power - Average Forward | :200mW | AC contacts rating (at resistance load) | 6 A / 250 VAC |
| DC contacts rating (at resistance load) | 3 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 10mm | Width | :10mm |
| Height | 10.7mm | Length | 20mm |
| Weight | 0.005 | Size - Body | 20 x 10.7 x 10mm |
| Height (Max) | :10.7mm | Pitch - Post | 7.62mm |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Material Finish | :- | Contact Material | Silver Cadmium Oxide |
| Package Quantity | 2 | Contact Layout, Typical | SPST-NO |
Product Info
| Spg | 2 | Relay Type | :Subminiature |
| Relay Variant | miniature | Number of Units | 1 |
| Application Specifics | Compact | Contacts Configuration | SPST-NO |
Environmental
| Ingress Protection | IP67 | Operating Temperature | +85°C |
