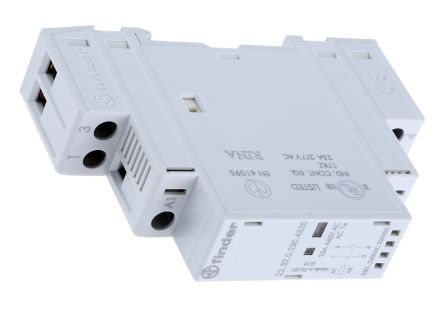

22.32.0.230.4520
| Manufacturer | |
| Description | Modular contactor 1NO+1NC 25A 230V ac/dc RELAY, CONTACTOR, 25A, 1N0+1NC, 230V Relay: installation; SPST-NO + SPST-NC; Ucoil:230VAC; 25A; IP20 Power Contactor Coil Voltage: 230 VAC/VDC Contact Configuration: 1A+1B SPST-NO+NPST-NC Current: 25 Amps Mounting: Din Rail Operating Function: Single Side Stable Finder DR 985 PTC 单刀双掷 DIN Rail 非闭锁继电器, 25 A, 240V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Coil Power | 2.2W | Voltage - Max | 400V AC |
| Isolation Type | 6kV | Coil Resistance | 4200 Ω |
| Number of Poles | :2 | Current - Output | :25A |
| Voltage - Supply | 230V ac/dc | Switching Voltage | 440V |
| Current - Switching | 25 A | Current Rating (Max) | 25A |
| Power - Output Surge | 6250 VA | Current - Max/Contact | :25A |
| Power - Average Forward | :2VA | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 17.5mm | Width | :17.5mm |
| Height | 84mm | Length | 60.8mm |
| Weight | 0.1 | Termination | :Screw |
| Height (Max) | :84mm | Mounting Type | DIN Rail Panel Mount |
| Terminal Type | Screw | Contact Material | AgSnO2 |
| Contact Layout, Typical | NO/NC | ||
Product Info
| Relay Type | :Modular | Number of Units | 1 |
| Application Specifics | General Purpose | Contacts Configuration | SPST-NO + SPST-NC |
Environmental
| Ingress Protection | IP20 | Operating Temperature | +50°C |
