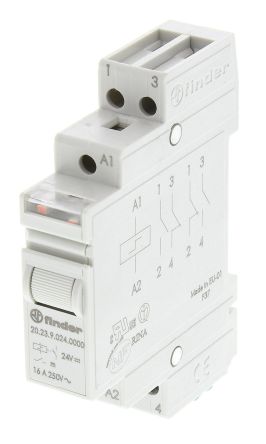

20.23.9.024.0000
| Manufacturer | |
| Description | SPST-NC, SPST-NO DIN Rail Panel Mount Latching Relay, 16A, 24V dc RELAY, STEP, MODULAR, 16A, 24VDC Alternating / Sequencing Relay Coil Voltage: 24 VDC Contact Configuration: 1A+1B SPST-NO+SPST-NC Output Current : 16 Amps Mounting: Din Rail Selector Switch : No Finder 双刀单掷 DIN Rail 自锁继电器, 16 A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365080 |
Electrical
| Coil Type | :DC | Coil Power | 5W |
| Coil Current | :230mA | Voltage - Max | :400VAC |
| Isolation Type | 4kV | Voltage - Core | :250V |
| Coil Resistance | 105 Ω | Number of Poles | :2 |
| Current - Output | :30A | Voltage - Supply | 24V dc |
| Switching Voltage | 250V ac | Current - Switching | 16 A |
| Voltage - Breakdown | :3500VAC | Current Rating (Max) | :16A |
| Power - Output Surge | 4 kVA | Current - Max/Contact | :30A |
| Voltage - Input (Min) | :21.6VDC | Voltage - Switching AC | :250VAC |
| Power - Average Forward | :5W | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 17.4mm | Width | :17.4mm |
| Height | 84mm | Length | :84mm |
| Weight | 0.135 | Height (Max) | :84mm |
| Mounting Type | DIN Rail Panel Mount | Terminal Type | Screw |
| Contact Material | Silver Nickel | Number of Positions | :100000 |
| Contact Layout, Typical | SPST-NC, SPST-NO | ||
Product Info
| Series | :20 | Features | Mechanical Flag Indicator, Test Button |
| Relay Type | :Modular | ||
Environmental
| NEMA Frame Size | :IP20 | Switching Cycles | :300000 |
| Operating Temperature | +40°C | ||
