11.91.8.230.0000
| Manufacturer | |

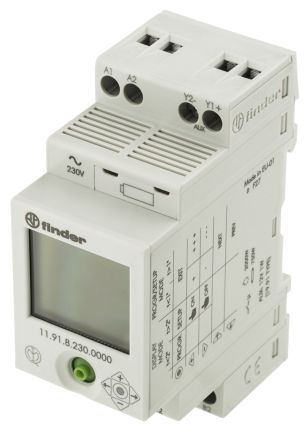

| Description | Lighting Time Switch Finder 11.91.8.230.0000, Light Sensitive, 2 to 150lux RELAY, LIGHT DEP, 1CO, 16A, W/ DISPLAY Module: Photo electric controller; 230VAC; OUT1 type: SPDT; IP20 1 通道 计时器灯开关, 230 V 交流，230 V 交流, 30s设定时间 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85364900 |
Electrical
| Delay Time | 30s | Output Type | :Relay |
| Range deg/s | 2 → 150lux | Release Time | 30s |
| Voltage - Supply | 230 V ac | Number of Outputs | :1 |
| Number of Channels | 1 | Voltage - Input (Min) | 250VAC/16A |
| Switch Function/Rating | SPDT | Contact Rating @ Voltage | :250V ac |
Mechanical
| Depth | 60.8mm | Width | :35mm |
| Height | 88.8mm | Length | :88.8mm |
| Weight | 0.185 | Size - Body | 35 x 88.8 x 60.8mm |
| Body Material | plastic | Mounting Type | DIN |
| Terminal Type | Screw | Contact Layout, Typical | NO/NC |
Product Info
| Features | sensitivity adjustable | Function | delivered with sensor |
| Relay Type | 11.91 | Switch Type | Light Sensitive |
| Display Style | LCD | Electrical Life | 100000cycles |
| Number of Units | 1 | Module/Board Type | Photo electric controller |
Environmental
| Seal Rating | IP20, IP54 | Battery Life | 5yr |
| Operate Time | 15s | Ingress Protection | IP20 |
| Operating Temperature | :50°C | ||
