65.31.9.024.0300
| Manufacturer | |

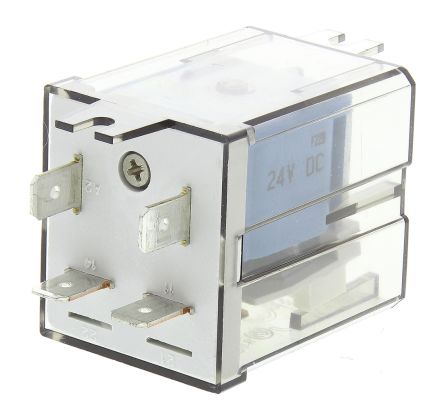

| Description | . 65.31.9.024.0300 - General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount from Finder Relays, Inc.. from now! |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | ||
Electrical
| Coil Power | 1.3W | Range deg/s | :FINDER - 65 Series |
| Coil Current | 54mA | Isolation Type | 4kV |
| Coil Resistance | 445 Ω | Current - Output | :20A |
| Voltage - Supply | 24V dc | Switching Voltage | 250V ac |
| Current - Switching | 30 A | Power - Output Surge | 7500 VA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | 30A |
| AC contacts rating (at resistance load) | 30 A / 250 VAC | ||
Mechanical
| Depth | 36.5mm | Height | 51.5mm |
| Length | 32.2mm | Weight | 0.068 |
| Mounting Type | Flange Mount | Terminal Type | Tab |
| Contact Material | Silver Cadmium Oxide | Package Quantity | 10 |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Spg | 10 | Relay Type | electromagnetic |
| Relay Variant | industrial | Number of Units | 1 |
| Application Specifics | Power | Contacts Configuration | SPST-NO + SPST-NC |
Environmental
| Operating Temperature | +75°C | ||
