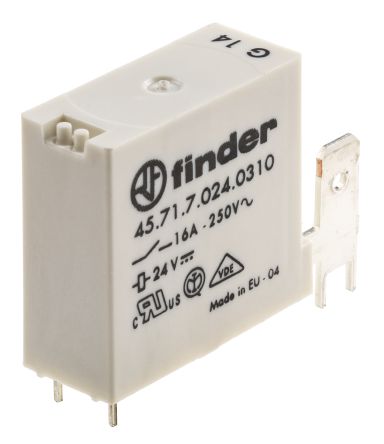

45.71.7.024.0310
| Manufacturer | |
| Description | . 45.71.7.024.0310 - General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole from Finder Relays, Inc.. from now! |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Coil Power | 0.65W | Power - Max | 4 W |
| Coil Current | 15mA | Isolation Type | 4kV |
| Coil Resistance | 1.6 kΩ | Number of Poles | 1 |
| Voltage - Supply | 24V dc | Switching Voltage | 250V ac |
| Power - Peak Pulse | 750 VA | Current - Switching | 16 A |
| Current Rating - DC | 4 W | Current Rating (Max) | 16 A |
| Power - Output Surge | 750 VA | Current - Max/Contact | 16A |
| Voltage - Switching AC | 250V 交流 | Current - Peak Pulse (8/20us) | 16 A |
| DC contacts rating (at resistance load) | 16 A / 30 VDC | ||
Mechanical
| Depth | 12.5mm | Height | 28.5mm |
| Length | 40.7mm | Weight | 10 g |
| Size - Body | 40.7 x 12.5 x 28.5mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Contact Material | Silver Cadmium Oxide |
| Package Quantity | 1 | Size / Dimension | 40.7 x 12.5 x 28.5mm |
| Termination Style | 通孔 | Insulation Material | 4kV |
| Contact Layout, Typical | SP-NO | ||
Product Info
| Spg | 1 | Function | Y |
| Relay Type | electromagnetic | Application | 印刷电路板 |
| Relay Variant | sensitive, miniature | Number of Units | 1 |
| Application Specifics | PCB | Contacts Configuration | SPST-NO |
Environmental
| Operating Temperature | +125°C | ||
