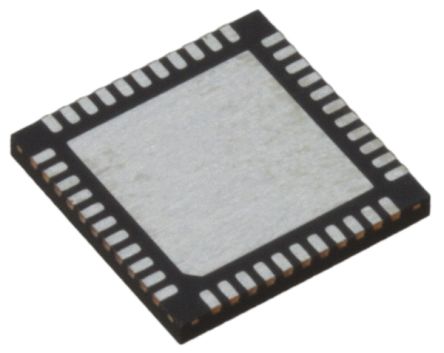

XRP7724ILB-F
| Manufacturer | |
| Description | Soft Switching PWM Controllers QUAD DIGITAL PWM BUCK CONTROLLER POWER MISC IC REG 6OUT BCK/LINEAR 44TQFN Switching Controllers QUAD DIGITAL PWM BUCK CONTROLLER PWM, CNTRL, QUAD, 1.23MHZ, 44TQFN , 1.23 MHz PWM 控制器, 4.75 → 25 V, 44针 TQFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Soft Switching PWM Controllers | Standard Package | 260 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423190 | ||
Electrical
| Frequency | :1.23MHz | w/LED Driver | No |
| Voltage Rating | 0.6 V to 5.5 V | Current - Output | 4 mA |
| Current - Supply | 4 mA | Voltage - Supply | 4.75 V to 25 V |
| Number of Outputs | Quad Output | Frequency - Switching | 105 kHz to 1.23 MHz |
| Voltage/Current - Output 1 | Controller | Voltage/Current - Output 2 | Controller |
| Voltage/Current - Output 3 | Controller | ||
Mechanical
| Width | 7 | Weight | 0.000025 |
| Packaging | Tray | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :44 | Package / Case | TQFN-44 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 7 |
| Package Quantity | TQFN EP | Number of Positions | 44 |
| Shell Size - Insert | 0.73 | Supplier Device Package | 44-TQFN-EP (7x7) |
Product Info
| Type | Voltage Mode PWM Controllers | Series | XRP7724 |
| Function | Broadcast Equipment | Topology | Step-Down (Buck) (4), Linear (LDO) (2) |
| w/Sequencer | Yes | w/Supervisor | No |
| Printed Circuit Board | 44 | ||
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | + 85 C |
