XRP7704ILBTR-F
| Manufacturer | |
| Description | Soft Switching PWM Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C DC DC Cntrlr Quad-OUT DPWM DC to DC Controller/Step Down 6.5V to 20V Input 40-Pin TQFN EP T/R IC REG CTRLR BUCK PWM 40-TQFN Switching Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Soft Switching PWM Controllers | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | Standard Package Name | QFN |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| PWM Type | Controller | Duty Cycle | 85% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 0.9 V to 5.1 V |
| Boost Converter | No | Frequency - Max | 1.5MHz |
| Current - Output | 50 mA | Current - Supply | 50 mA |
| Voltage - Supply | 6.5 V to 20 V | Doubler Converter | No |
| Flyback Converter | No | Number of Outputs | Quad Output |
| Divider/Multiplier | No | Inverting Converter | No |
| Frequency - Switching | 300 kHz to 1500 kHz | ||
Mechanical
| Packaging | Reel | Lead Style | No Lead |
| Mounting Style | SMD/SMT | Package / Case | TQFN-40 |
| Package Quantity | TQFN EP | Number of Positions | 40 |
Product Info
| Type | DPWM DC to DC Controller/Step Down | Series | XRP7704 |
| Manufacturer | Exar | ||
Environmental
| Operating Temperature | + 125 C | ||
Similar Parts
XRP7704EVB-XPM
Exar
Power Management IC Development Tools XRP7704/40 In-Socket Programmer Board EVALUATION BOARD ,ON BOARD FLASH IN-SOCKET PROG BRD VIA USB/GUI
$1020.0000
Details
XRP7704EVB
Exar
Power Management IC Development Tools Eval Board for XRP7704 Series XRP7704 EVALUATION BOARD WITH EVAL BOARD FOR XRP7704 Development Kit, Power Management With Evaluation Board for XRP7704
$1122.8160
Details

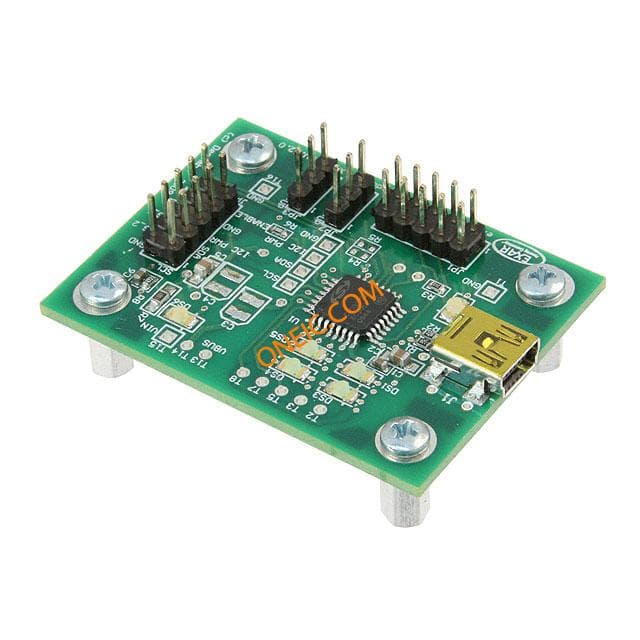

XRP77XXEVB-XCM
